Key Features

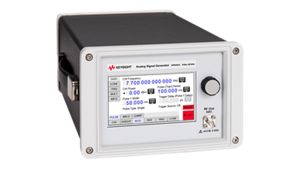

- Compact and portable RF and μW analog signal generator
- OCXO stabilized low phase noise signal with mHz resolution
- Wide and accurately levelled output power range
- Fast frequency and amplitude switching speed
- Modulation capabilities such as AM, FM, PM, Pulse Modulation, and Frequency Chirp
- Low power consumption and low power dissipation
- Local front panel operation, PC controlled local or remote operation
- License upgradeable for frequency ranges and options
Qualify
- Need lower output power on AP500xA? Sell AP500xA-1E1.
- Need higher output power on AP5002A? Sell AP5002A-1EA.
- Need faster speed on AP5002A? Sell AP5002A-UNQ.
Related Products
- N932xC Basic Spectrum Analyzer
- N9000B CXA signal analyzer
- Power sensors
- RF test accessories
Model Comparison
| Model | MXG N5183B | EXG N5173B | AP5002A | MXG N5181B | EXG N5171B | AP5001A |
|---|---|---|---|---|---|---|
| Frequency range | 9 kHz to 40 GHz | 9 kHz to 40 GHz | 9 kHz to 26 GHz | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 9 kHz to 6.1 GHz |
| Frequency switching speed | 600 μs | 600 μs |
300 μs
30 μs, Opt. UNZ
|
800 μs | 800 μs | 200 μs |
| Sweep mode | list, step | list, step | list, step | list, step | list, step | list, step |
| Minimum output power at 1 GHz | –90 dBm | –90 dBm | –120 dBm | –127 dBm | –110 dBm | –120 dBm |
| Maximum output power at 1 GHz | +23 dBm | +23 dBm | +23 dBm | +24 dBm | +21 dBm | +17 dBm |
| Level accuracy at 1 GHz | ± 0.6 dB | ± 0.6 dB | ±1.0 dB | ± 0.6 dB | ± 0.6 dB | ± 0.8 dB |
| SSB phase noise at 1 GHz | –146 dBc/Hz (10 kHz offset) |
–122 dBc/Hz (20 kHz offset) |
–130 dBc/Hz (20 kHz offset) |
–146 dBc/Hz (10 kHz offset) |
–122 dBc/Hz (20 kHz offset) |
–130 dBc/Hz (20 kHz offset) |
| Harmonics at 1 GHz | –33 dBc | –33 dBc | –30 dBc | –35 dBc | –35 dBc | –30 dBc |
| Non-harmonics at 1 GHz | –92 dBc | –72 dBc | –65 dBc | –92 dBc | –72 dBc | –55 dBc |
Competitive Information
| Model |
Keysight
AP5001A
|
Keysight
AP5002A
|
Rigol DSG3000B |
Siglent SSG5000X |
Siglent SSG5000A |
|---|---|---|---|---|---|
| Frequency range | 9 kHz to 2/4/6.1 GHz | 9 kHz to 12/20/26 GHz | 9 kHz to 6.5/13.6 | 9 kHz to 4/6 GHz | 9 kHz to 13.6/20 GHz |
| Output power range |
–120 to +17 dBm
(Opt 1E1)
|
–120 to +23 dBm
(Opt 1E1 & 1EA)
|
–110 to +13 dBm | –130 to +20 dBm | –120 to +22 dBm |
| Phase Noise (1 GHz, 20 kHz offset) | –130 dBc/Hz (nom.) | –130 dBc/Hz (nom.) | –116 dBc/Hz (typ.) | –120 dBc/Hz (typ.) | –120 dBc/Hz (typ.) |
| Harmonics | –40 dBc (nom.) | –40 dBc (nom.) | <–30 dBc (tyo.) | <–30 dBc | <–30 dBc (typ.) |
| Frequency Switching Speed | 400 μs (nom.) | ≤40 μs, Opt. UNQ or UNZ | <10 ms (typ.) | <5 ms (typ.) | <10 ms (typ.) |
