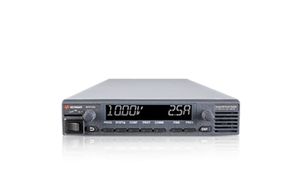

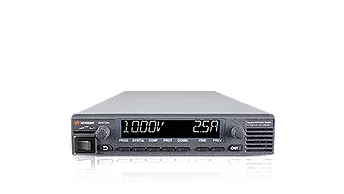

DP5700 Series High-Density DC Power Supply

What are you looking for?

What is it? A 1500 W to 3400 W single output system DC power supply.
Who needs it? Design validation and manufacturing engineers.
Target application/industry? Aerospace & defence, automotive, component, communications.
Areas of growth? Industrial automation, power device testing.


Key Features

  • Connect up to 4 units in parallel for increased output current or 2 units in series for higher output voltage

  • Protection from over-temperature, over-current, over-voltage and under-voltage

  • LAN, USB and GPIB interfaces standard

  • Removable SD card option

  • Lockable controls against accidental power-supply parameter changes

  • Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic

Model Comparison

Model
Power Output
DC output rating
Ripple & Noise
Voltage
Current
Transient response
AC input voltage
DP5721A
 1500 W 10 V, 150 A 6 mVrms ≤5 mV 0.1 + 300 mA ≤1 ms 100 - 240 VAC
DP5722A
 20 V, 75 A ≤10 mV 0.1 + 150 mA
DP5723A
 30 V, 50 A ≤15 mV 0.1 + 100 mA
DP5724A
 40 V, 38 A 7 mVrms ≤20 mV 0.1 + 76  mA
DP5726A
 60 V, 25 A ≤30 mV 0.1 + 50 mA
DP5728A
 80 V, 19 A 8 mVrms ≤40 mV 0.1 + 38 mA
DP5730A
 100 V, 15 A 30 mVrms ≤50 mV 0.1 + 30 mA
DP5731A
 150 V, 10 A 20 mVrms ≤75 mV 0.1 + 20 mA ≤2 ms
DP5733A
 300 V, 5 A 45 mVrms ≤150 mV 0.1 + 10 mA
DP5736A
 600 V, 2.6 A 100 mVrms ≤300 mV 0.1 + 5.2 mA
DP5741AS/L/H
 3400 W 10 V, 340 A 8 mVrms ≤5 mV 0.1 + 680 mA 1 ms
200 - 2401 VAC
or
380 - 480 VAC
DP5742AS/L/H
 20 V, 170 A 10 mVrms ≤10 mV 0.1 + 340 mA
DP5743AS/L/H
 30 V, 112 A ≤15 mV 0.1 + 224 mA
DP5744AS/L/H
 40 V, 85 A 12 mVrms ≤20 mV 0.1 + 170 mA
DP5746AS/L/H
 60 V, 56 A 15 mVrms ≤30 mV 0.1 + 112 mA
DP5748AS/L/H
80 V, 42 A
 ≤40 mV 0.1 + 84 mA
DP5750AS/L/H
 100 V, 34 A ≤50 mV 0.1 + 68 mA
DP5751AS/L/H
 150 V, 22.5 A 20 mVrms ≤75 mV 0.1 + 45 mA 2 ms
DP5753AS/L/H
 300 V, 11.5 A 60 mVrms ≤150 mV 0.1 + 23 mA
DP5756AS/L/H
 600 V, 5.6 A 100 mVrms ≤300 mV 0.1 + 11.2 mA

1. AS: 200 – 240 (1-phase); AL: 200 – 240 (3-phase); AH: 380 – 480 (3-phase)



Data Sheet: 3125-1393EN







Calibration & Warranty

R-50C-011-3

3 Year Calibration Plan

R-50C-011-5

5 Year Calibration Plan

R-51B-001-5Z

5 Year Warranty Plan
