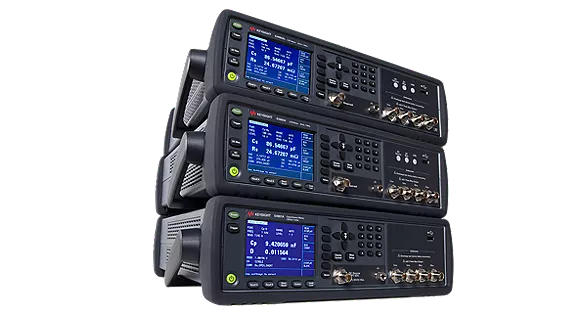

Key Features
- Measurement parameters: Z, Y, Theta, R, X, G, B, C, L, D, Q, Rdc
- Measurement versatility: 201 points sweep measurement supported
- USB, LAN (LXI) including Web interface for easy set-up and control
- System integration capability: GPIB/cable extension
Key Specifications
|
Basic accuracy |
0.05% |
|
Measurement parameters |
Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, θd, θr, B, Vdc, Idc |
|
Test signal voltage |
0 Vrms - 2.0 VRMS |
|
Test signal current |
0 Arms - 20 mArms |
|
Measurement time |
Short: 5.6 ms (E4980B), 12 ms (E4980BL) |
- Power supply
- GPIB card and cables
- N1500A-006 material measurment software suite
| Key Product Differentiator: Wide measurement range with better accuracy. |
Ordering Information E4980BL
⇑ Options may be purchased either initially or as upgrades later.
|
032 |
⇑ |
20 Hz to 300 kHz with DCR measurement |
|
052 |
⇑ |
20 Hz to 500 kHz with DCR measurement |
|
102 |
⇑ |
20 Hz to 1 MHz with DCR measurement |
|
201 |
|
Handler interface |
|
301 |
|
Scanner interface |
|
710 |
|
No interface |
Ordering Information E4980B
|
001 |
Power and DC bias enhancement |
|
201 |
Handler interface |
|
301 |
Scanner interface |
|
710 |
No interface |
Recommended Accessories
|
Model |
Description |
|
16047A/E |
Spring contact type (A) Screw-lock type (E) test fixtures for axial/radial DUTs |
|
16089A/B/C (5 Hz to 100 kHz) |
Large clip (A)/medium clip (B)/IC clip (C) test fixtures |
|
16034E/G/H |
Test fixtures for large SMDs (E)/small SMDs (G)/for array type SMDs (H) |
|
16334A |
Tweezers contact test fixture (cable length 1 m) |
|
16048A/D/E |
BNC test leads (1/2/4 m) |
|
16065A |
Test fixture for axial/radial DUTs with external DC bias input, ± 200 V dc max. |
|
16065C |
External DC bias adapter, ± 40 V peak max. (AC+DC) |
|
16451B |
Dielectric material test fixture (supported with N1500A-006 material measurement software suite) |
|
BV0014B |
PathWave BenchVue LCR Meter Control & Automation app |
 |
 |
 |
| 16047E Test fixture | 16451B Dielectric test fixture | 16452A Liquid dielectric test fixture |
 |
 |
|
| 16048A Test leads | 16034G Test fixture |
E4980B/BL Configuration Guide: 3124-1418
