Ordering Information
Options may be purchased either initially or as upgrades later.
| 030 | 1 MHz - 300 MHz |
| 050 | 1 MHz - 500 MHz |
| 100 |
1 MHz - 1 GHz
|
|
300
|
1 MHz - 3 GHz
|
|
004
|
Working standard set
|
|
020
|
Test head extension cable set
|
|
700
|
16195B calibration kit
|
|
710
|
Test fixture stand
|
|
720
|
3.5 mm-to-7 mm coaxial adapter
|

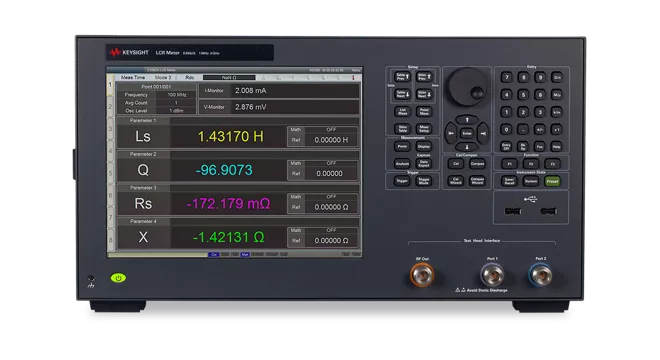

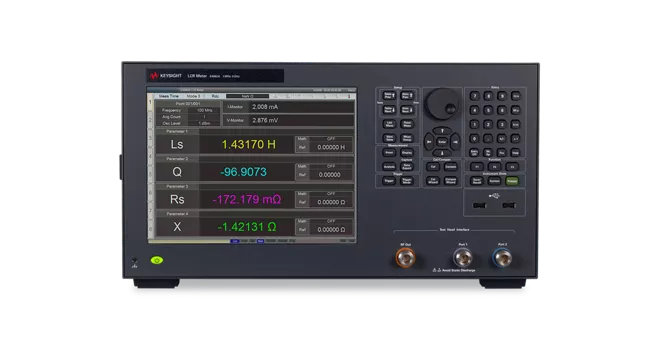

Key Features
| Basic accuracy |
± 0.8% (typical ± 0.45%)
|
| Parameters | |Z|, |Y|, L, C, R, X, G, B, D, Q, G |
| Impedance range |
140 mΩ to 4.8 kΩ within 10% accuracy
|
| Measurement time |
0.9 ms/point (mode1)
|
| Display | 10.4 inch LCD touch |
| Key Product Differentiator: Wide measurement range, up to 3 GHz, with better accuracy. |
Related Products
Included Accessories
- Power supply
- GPIB card and cables
- Test head with 1 m test cable
- N (m) SMA (f) Adapter
- Wrench for 3.5/SMA connector
Optional Accessories
| 16190B | Performance test kit, 7-mm |
|---|---|
| 16200B | External DC bias adapter |
| 16196A/B/C/D | Parallel electrode SMD test fixture |
| 16092A | Spring clip text fixture |
| 16192A | Parallel electrode SMD test fixture |
| 16194A | High temperature component test fixture |
| 16197A | Bottom electrode SMD test fixture |
| 16198A | Bottom electrode SMD test fixture |
| In EMEAI, E4982A sold by Prem Plus Distributors only |
 |
 |
| 16190B Performance test kit | 16196A Parallel electrode SMD test fixture |
 |
 |
| 16198A Bottom electrode SMD test fixture |
