Bandwidth standard
|
New visualization standard | Integration standard |
|
Performance meets price: two opposing concepts meet in a portable 6-GHz oscilloscope
|
Quickly troubleshoot your design by visualizing your challenges
|
Get the power of 6 instruments in 1, fully upgradeable
|
Competitive Information
| Keysight 6000 X-Series | Tektronix MSO54/56/58 series | Tektronix MSO44/46 | |
| Bandwidth | 1/2.5/4/6 GHz | 350/500 MHz, 1/2 GHz | 200/350/500 MHz, 1/1.5 GHz |
| Maximum sample rate | 20 GSa/s on all models | 6.25 GSa/s | 6.25 GSa/s |
| BW upgrade | Yes – license key | ||
| Maximum memory depth | Up to 4 Mpts | Up to 125 Mpts | Up to 62.5 Mpts |
| Segmented smart memory | Standard | ||
| Display | 12.1" capacitive multi-touch | 15.6" capacitive touch | 13.3" capacitive touch |
| Max. waveform update | Up to 450,000 wfms/s | Up to 500,000 wfms/s* | Up to 340,000 wfms/s* |
| Waveform update rate (normal mode) | Up to 140,000 wfms/s | Up to 100 wfms/s | 22 wfms/s |
| Instrument integration | 2 ch AWG, counter, DVM | Spectrum analyzer | |
| Jitter/real time eye diagram | Option | Standard | |
| Hardware based serial decode and mask test | X | No, software post processing | No, software post processing |
| Voice control | Yes – localized |
* Update rate achieved in a special mode that is incompatible with many major features.
Measurement Options ↑ Options may be purchased either initially or as upgrades later.
| D6000BDLB | ↑ | ncludes all measurement options (does not include BW, MSO or WaveGen upgrades) | D6000AUTB | ↑ | Automotive serial trigger and decode (CAN, CAN FD, LIN, FlexRay, SENT, CXPI, PSI5/Manchester, NRZ, mask test, and Bode plots) |
|

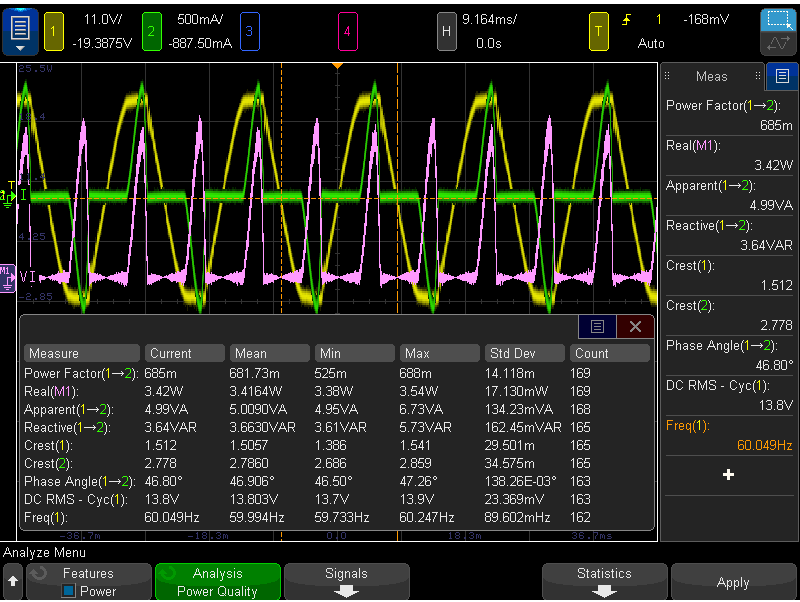

| D6000PWRB | ↑ | Power analysis, USB PD, Bode plots, and mask test | D6000AERB | ↑ | MIL-STD 1553 and ARINC 429 serial trigger and decode, Bode plots and mask test | |
| D6000GENB | ↑ | Embedded serial trigger and decode (I²C, SPI, UART, I²S, USB PD, mask test, Bode plots, enhanced video test) | DSOX6WAVEGEN2 | ↑ | Dual-channel WaveGen 20-MHz AWG | |

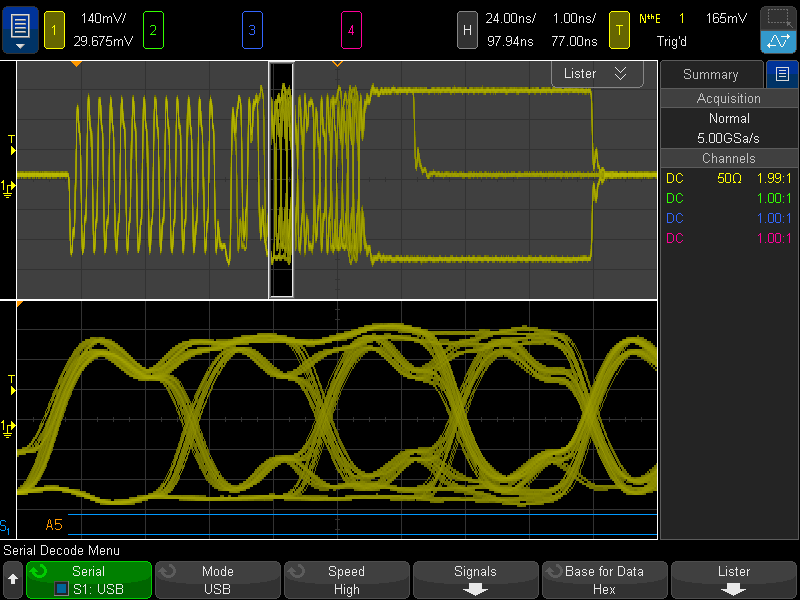

| D6000USBB | ↑ | USB 2.0 low/full/hi-speed serial trigger and decode, USB PD, USB signal quality test, jitter analysis, mask test, Bode plots) | DSOX6MSO | ↑ | 6000 X-Series MSO | |
| DSOXBODE | ↑ | Bode plot training kit |
