Key Features
- Frequency range of 50 MHz to 18/40/50 GHz
- Wide dynamic range of -30 to +20 dBm (peak/gated), -45 dBm to +20 dBm (average only mode)
- 30 MHz video bandwidth and single shot real-time capture at 80 Msample/sec per second
- Fast rise/fall time ≤13 ns
- Internal zeroing & calibration
- High measurement speed of up to 25,000 readings/second (free run/fast buffer mode)
-
High peak power dynamic range, measure a wide range of signals (LTE, WLAN, fast radar pulses)
-
Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
|
Key Product Differentiator: Fast peak measurements up to 40 GHz as well as internal cal and zeroing. |
Qualify
-
Current user of bench power meter/sensor? Sell N1911/N1912A.
Included Accessories
-
BNC male to SMB female trigger cable, 50 Ω, 1.5 m (quantity two)
-
USB sensor cable: 5 ft (1.5 m), default cable length, customer may select alternative length at time of order
Ordering Information
| Model number | Description |
| U2021XA | USB peak and average, 50 MHz to 18 GHz |

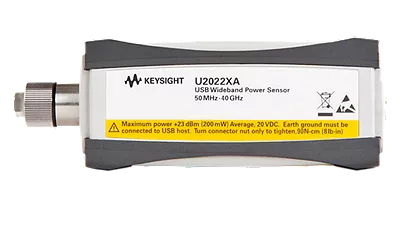

| U2022XA | USB peak and average, 50 MHz to 40/50 GHz |
Data Sheet: 5991-0310EN
www.keysight.com/find/usbpowersensor
Optional Accessories
| U2031A/B/C | Power sensor cable 1.5/3/5 m* |
| U2032A | BNC male to SMB female trigger cable 50 Ω, 1.5 m |
| 201 | Transit case |
| 203 | Holster |
| R-50C-011-3 | 3 Year Calibration Plan |
| R-50C-011-5 | 5 Year Calibration Plan |
| R-51B-001-5Z | 5 Year Warranty Plan |
- FieldFox
- Signal generator
- Spectrum analyzer
Use Keysight USB sensors
with a variety of instruments.
- Average power, peak power, and peak to average ratio
- Analog gauge display and digital display, dBm and watts
- Relative/absolute measurements, dB or %, minimum and maximum limits
- Trace graph for pulse profiling with gating
- Rise time, fall time, pulse width, pulse period, pulse repetition frequency
Click here for more information: Compatibility of USB Power Sensors with Keysight Instruments
