E36100 and E36150 Series Autoranging Bench Power Supplies

What are you looking for?

What is it? Bench Power Supply with a small 2U x ¼ rack foot print.
Who needs it? Engineers and technicians doing prototype evaluation, circuit and component qualification.
Target application/industry? R&D engineers designing electronics, industries include: automotive, medical, education, A&D,
telecommunications, and electronics.
Areas of growth? Customers currently using low cost bench power supplies with a need for automation will appreciate the updated
interface, USB, LAN, and low output noise.

E36100 Series Key Features

  • Compact, 2U x ¼ rack form factor

  • Low noise, linear supply

  • Built-in device protection

  • Alphanumeric OLED and intuitive on-screen menu

  • Accurate low-range current readback

  • Connect, automate and control remotely either with SCPI, IVI or PathWave BenchVue

  • Modernized I/O with USB and LAN

  • Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic

What is it? 1-channel high power 800 W autoranging DC power supply.
Who needs it? Engineers and technicians doing prototype evaluation, circuit and component qualification.
Target application/industry? R&D engineers designing electronics, industries include: automotive, medical, education, A&D,
telecommunications, and electronics.
Areas of growth? Customers currently using bench power supplies with a need for high power and fast programming speeds and slew rates.

E36150 Series Key Features
  • Two autoranging modes, 30V/80A and 60V/40A
  • Detachable high current front binding post for safe/easy wire connection
  • Peak power handling
  • Software options: PathWave PS App with BenchVue Test Flow, and PW9252A PathWave Advanced Power Control and Analysis
  • Scope view (Option), and AWG (Option)
  • Over voltage, over current and over temperature protection
  • Programable interface: USB/LAN Option-GPIB



Key Product Differentiator: Smaller footprint 2U x ¼ rack. Fast programming speed. High accuracy in the low range current measurements. Flexible, modern I/O connectivity.



Model Comarison

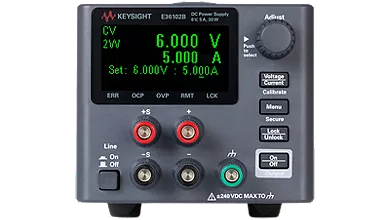

E36102B

E36103B

E36104B

E36105B

E36106B

E36154A

E36155A

Size

2 U x ¼ Rack (98.6 mm H x 106 mm W x 367. 6 mm D)

145 mm H X 216 W x 495 mm D

Output power

30 W

40 W

35 W

36 W

40 W

800 W

Output voltage/current

6 V, 5 A

20 V, 2 A

35 V, 1 A

60 V, 0.6 A

100 V, 0.4 A

30 V, 80 A

60 V, 40A

Output ripple and noise RMS (20 Hz to 20 MHz)

350 µVrms

0.8 mVrms

1.2 mVrms

1.55 mVrms

2.5 mVrms

< 5 mVrms

Readback accuracy 12 months (25 + 5 °C), ± (% output + offset)

Current 0.05% +

4 mA

1 mA

0.5 mA

0.3 mA

0.2 mA

20 mA

10 mA

Low range current 0.25% +

40 µA

100 μA

Low range max current measurement

20 mA

8 mA

4 mA

3 mA

2 mA

5 mA

4 mA









Calibration & Warranty

R-50C-011-3

3 Year Calibration Plan

R-50C-011-5

5 Year Calibration Plan

R-51B-001-5Z

5 Year Warranty Plan
