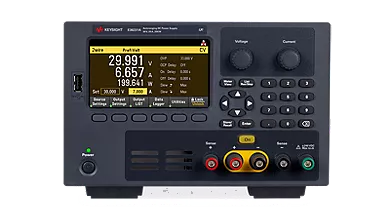

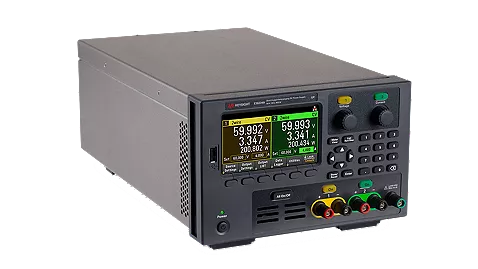

What is it? Autoranging Bench Power Supply with low noise, up to two independent channels and intuitive interface.
Who needs it? Engineers and technicians who require a performance bench to build simple automation system and doing evaluation, circuit and component qualification.
Target application/industry? R&D engineers designing electronics, industries include: automotive, medical, education, A&D,
telecommunications and electronics.
Areas of growth? Customers currently using the E3633/34A will appreciate the updated interface-USB & LAN, higher power capability, and advanced features.
Key Features
-
4.3” color LCD Display
-
Low output ripple and noise
-
Variable voltage slew rate to control inrush current
-
Low range current measurement
-
Auto series/parallel connection
-
E3633A/E3634A code compatible
-
Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
| Key Product Differentiator: Higher power, autoranging, variable voltage slew rate, ease-of-use auto-series/parallel setting, output sequencing, LIST, data logging, and low current measurements. |
Model Comparison
|
|
E36231A |
E36232A |
E36233A |
E36234A |
||
|
Power output |
200 W |
200 W |
400 W |
400 W |
||
|
Channel |
1 |
1 |
1 |
2 |
1 |
2 |
|
DC output rating (0 to 40 ºC) |
0 to 30 V |
0 to 60 V |
0 to 30 V |
0 to 30 V |
0 to 60 V |
0 to 60 V |
|
0 to 20 A |
0 to 10 A |
0 to 20 A |
0 to 20 A |
0 to 10 A |
0 to 10 A |
|
|
Output ripple and noise (20 Hz to 20 MHz) |
||||||
|
Normal mode voltage, Vpp |
< 4.5 mVpp |
< 3.5 mVpp |
< 4.5 mVpp |
< 3.5 mVpp |
||
|
Output ripple and noise (20 Hz to 10 MHz) |
||||||
|
Normal mode voltage, Vrms |
< 350 uVrms |
|||||
|
Accuracy 12 months (23 ºC ± 5 ºC) Programming accuracy ± (% of output + offset) |
||||||
|
Voltage |
0.03% +4 mV |
0.03% +8 mV |
0.03% +4 mV |
0.03% +8 mV |
||
|
Current |
0.1% +6 mA |
0.1% +3 mA |
0.1% +6 mA |
0.1% +3 mA |
||
|
Low range current1 |
0.25% +160 μA |
0.25% +80 μA |
0.25% +160 μA |
0.25% +80 μA |
||
1. ≤ 100 mA for E36231A and E36233A, ≤ 50 mA for E36232A and E36234A
