What is it? A low-profile modular system power supply or electronic load and a modular DC power analyzer for the bench.
Who needs it? System and test engineers use the low-profile modular power supply. Design engineers use the power analyzer.
Target application/industry? The low-profile modular power supply or electronic load are our most popular system used in all industries. The DC Power Analyzer: product development, and often to measure current consumption of battery power devices (IoT, Mobile Phones).
Areas of growth? Testing IoT (Internet of Things) devices such as; security and alarm systems, smart watches and wearable health monitors, portable medical devices and Power Management (PM) chips and circuits.
Key Features
N6700 low-profile modular mainframes
Optimized for ATE: small, fast and flexible
-
Compact 1 U High mainframe
-
Fast output response times and command processing (<1 ms)
-
User-defined arbitrary waveforms up to 512 points
-
Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
N6705C DC power analyzer
Optimized for testing prototypes: Gain insight into power consumption
-
All functionality available via front panel
-
User-defined arbitrary waveforms up to 64 Kpoints
-
Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
-
Advanced Battery Test and Emulation Software option available
Model Comparison
|
Mainframes |
Description |
Application |
Max # of Power Modules |
Max Power |
|
N6700C |
Low-profile Modular Power System (MPS) |
Aerospace, automotive, medical, and electronic automated test systems |
4 |
400 W |
|
N6701C |
600 W |
|||
|
N6702C |
1200 W |
|||
|
N6705C |
DC Power Analyzer |
Bench - R&D |
4 |
600 W |
Calibration & Warranty
|
R-50C-011-3 |
3 Year Calibration Plan |
|
R-50C-011-5 |
5 Year Calibration Plan |
|
R-51B-001-5Z |
5 Year Warranty Plan |

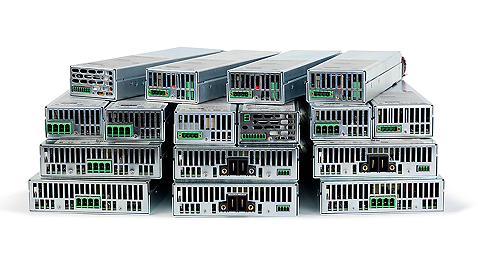

Each module can hold 4 modules. Select from over 30 modules
| Key Product Differentiator: High speed, scalability, small form factor. |
Pair with PathWave BenchVue Advanced Power Control and Analysis Software
Characterize voltage and current measurements and generate arbitrary waveforms from a N6705C with a PC.
| PW9252A | Single-instrument | Learn More |
| PW9252A | Multi-Instrument | Learn More |
Utilize PathWave BenchVue Advanced Battery Test and Emulation Software
Perform battery profiling and emulation, current drain analysis, battery run down and cycling testing. Software works with N6700C, N6701C, N6702C, and N6705C mainframes.
| PW9253A | Single-instrument | Learn More |
| PW9253A | Multi-Instrument | Learn More |
|
|
Mainframe |
Basic Modules N673X, 4X, 7X |
High-Performance Modules N675X |
Precision Modules N676X |
SMU and Application-Specific Modules N678x |
Electronic Load Module N679X |
|
Power per module |
n/a |
50/100/300 W |
50/100/300/500 W |
Up to 80 W |
100/200 W |
|
|
Voltage |
Up to 240 V (with multiple modules in series) |
Up to 150 V |
Up to 60 V |
Up to 20 V |
Up to 60 V |
|
|
Current |
Up to 100 A (with two 50 A modules in parallel) |
Up to 20 A |
Up to 50 A |
Up to 8 A |
Up to –20 A (100 W), –40 A (200 W) |
|
|
Voltmeter accuracy* |
Module dependent |
0.1% +20 mV |
0.05% +10 mV |
0.016% +1.5 mV |
0.025% +50 μV |
0.03% +7.2 mV |
|
Ampmeter accuracy |
Module dependent |
0.15% +2 mA |
0.1% +4 mA |
0.05% +100 nA |
0.025% +8 nA |
0.04% +400 uA |
|
Arbitrary waveform generator function |
Create waveforms up to 512 points |
|||||
|
Scope function † |
Digitizes at up to 200 kHz, up to 512 kpoints, up to 18 bits (module dependent) |
|||||
|
Data logger † |
Measurement interval from 20 μs to 60 s, max of 500 M readings per data log |
|||||
|
Memory † |
4 GB internal, up to 2 GB from external USB memory device |
|||||
|
Interface |
USB, LAN, GPIB (LXI) |
|||||
* Module & range dependent; best accuracy shown † Code must be written by the user. Examples available online.
