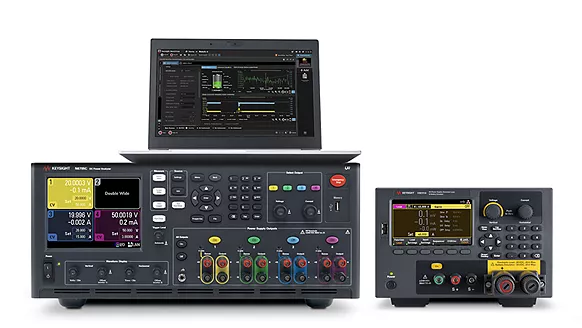

What is it? Integrated electronic load and power supply developed to use with Keysight PathWave BenchVue battery emulation software.
Who needs it? R&D Engineers who want to validate and extend the battery life of their devices.
Target application/industry? Low power (<200 W) battery-operated devices IoT, Industrial, and other industries.
Areas of growth? Testing IoT (Internet of Things) devices such as; smart locks, security cameras, smart meters/alarms, and GPS trackers.
Key Features
-
Power up to 200 W, 30 V, 20 A
-
Streamline your workflow with an integrated power supply and an electronic load
-
Profile batteries through charge / discharge to create a unique battery model
-
Emulate charge states to reduce test time, improve safety, and test repeatability
-
Visually charge / discharge batteries to determine capacity
-
Estimate battery aging effects through automated battery cycling
-
Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVB
|
Key Product Differentiator: Profile and emulate batteries with a single hardware and software solution |
Calibration & Warranty
|
R-50C-011-3 |
3 Year Calibration Plan |
|
R-50C-011-5 |
5 Year Calibration Plan |
|
R-51B-001-5Z |
5 Year Warranty Plan |
Model Comparison
|
Power supply |
Power |
200 W |
|
Voltage |
0 to 30 V |
|
|
Current |
0 to 20 A |
|
|
Electronic load |
Power |
250 W |
|
Voltage |
0 to 60 V |
|
|
Current |
0 to 40 A |
|
Power Supply |
|||
|
Readback accuracy
|
Voltage |
0.025% + 1.5 mV |
|
|
Current
|
Low, 0.1 |
0.035% + 10 μA |
|
|
Mid, 2 A |
0.03% + 300 μA |
||
|
High, 20 A |
0.05% + 250 μA |
||
|
Electronic Load |
|||
|
Readback accuracy |
Voltage |
Low, 15 V |
0.03% + 4.2 mV |
|
High, 60 V |
0.03% + 15 mV |
||
|
Current |
Low, 4 A |
0.05% + 820 μA |
|
|
High, 40 A |
0.05% + 7.2 mA |
||
Perform battery profiling and emulation, current drain analysis, battery run down and cycling testing.
| PW9253A | Single-instrument | Learn More |
| PW9253A | Multi-instrument | Learn More |
