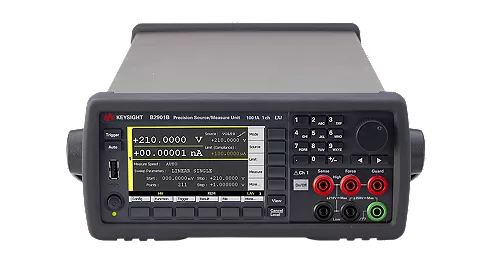

Precision Source/Measure Units (SMUs)
-
Innovative GUI: I-V measurement without PC programming
-
High sourcing and measurement resolution 10 fA/100 nV
B2960C Series Low Noise Power Source
-
Ultra-low noise performance with the external low-noise filter (10 μVrms)
-
Innovative sourcing capability and superior GUI
What is it? Precision source.
Who needs it? Researchers, designers and test engineers that need to source and measure voltage and current precisely to evaluate the DUT.
Target application/industry? Semiconductors, optical devices, AD/DA converters, sensor devices, VCOs (Voltage Controlled Oscillators), etc.
Areas of growth? Semiconductors, sensor devices, education.
|
Key Product Differentiator: 100 times less noise than any other competitive product in it’s class (B2960C with the external low noisefilter). |
Qualify
Do you need both precision source and measure capabilities?
-
If yes,
- Need lowest cost SMU? Sell B2901/10CL.
- Need best-in-class cost performance SMU? Sell B2901/02C.
- Need 10 μsec source/measure interval? Sell B2911/12C.
- Need 10 fA/100 nV source/measure resolution? Sell B2911/12C with N1297A/B.
-
If no,
- Need flexible arbitrary waveform generation? Sell B2961/62C.
- Need best-in-class source noise with up to 500 mA current? Sell B2961/62C with N1298A.
- Need low noise sourcing with up to 200 V/3 A output range? Sell B2961/62C with N1298C.
Calibration & Warranty
|
BV0003B |
PathWave BenchVue Power Supply Control & Automation app |
|
R-50C-011-3 |
3 Year Calibration Plan |
|
R-50C-011-5 |
5 Year Calibration Plan |
|
R-51B-001-5Z |
5 Year Warranty Plan |
| Model Number | B2901BL*/CL | B2910BL*/CL |
B2901/02B*
B2901/02C
|
B2911/12B*
B2911/12C
|
B2961/62B*
B2961/62C
|
|||||
| No filter | N1298C (Low noise) | N1298B (Ultra-low noise) |
N1298A (High-current ultra-low noise) |
|||||||
| Key Features | – Easy current-voltage characterization – 10 μsec min digitizing interval (B2911B*/C B2912B*/C) |
– 10 μVrms output noise with optional filter (N1298A/B) – ARB outputs: sine, square, trapezoid, ramp, triangle, user-defined |
||||||||
| Type | Source/measure unit | Precision Voltage/Current Source | ||||||||
| Number of channels | 1 or 2 | |||||||||
| Max current/ Max Voltage | 1.5 A / 21 V | 1.5 A / 210 V | 3.03 A (10.5 A pulsed) / 210 V | 105 mA / 42 V | 500 mA/21 V | |||||
| Source | Resolution | 5.5 digit | 6.5 digit | |||||||
| Min. Resolution | Current | 10 pA | 100 fA | 1 pA | 10 fA | 10 pA | ||||
| Voltage | 1 μV | 100 nV | ||||||||
| Voltage output noise | 3 mVrms | 350 μVrms | 10 μVrms | |||||||
| Measurement | Resolution | 6.5 digit | 4.5 digit | |||||||
| Min. Resolution | Current | 1 pA | 10 fA | 100 fA | 10 fA | 1 pA | 1 nA | 100 nA | ||
| Voltage | 100 nV | 10 μV | ||||||||
| DC sweep functions | Linear/log single, linear/log double, list | |||||||||
