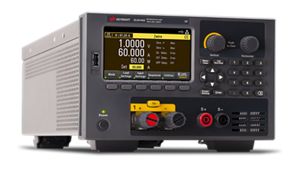

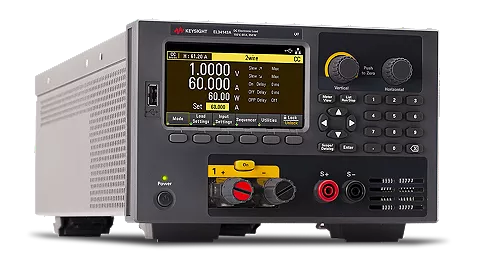

EL30000A Series Bench DC Electronic Loads



Key Features

  • Test up to 600 W, 1 or 2 inputs

  • Operate in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP) modes

  • Make accurate measurements with excellent programming/readback accuracy

  • Perform static and dynamic tests

  • View measurements on a 4.3-inch LCD color display

  • Transfer data with (USB drive, LAN, USB or GPIB



EL33133A

EL34143A

EL34243A

Inputs

1

1

2

Input Power

250 W

350 W

600 W

DC input voltage

150 V

150 V

150 V

DC input current

40 A

60 A

60 A per input, 120 A Parallel

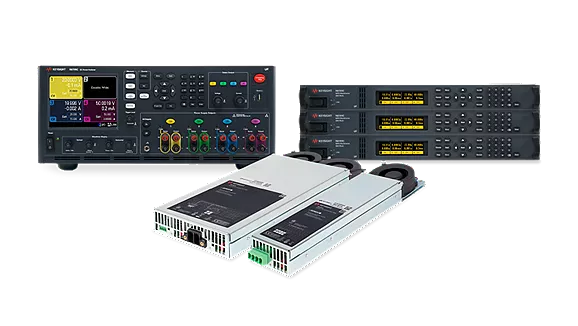

N6790 Series DC Electronic Load Modules



Key Features

  • 100 and 200 W modules fit in N6700 modular power system mainframe

  • Sink up to 20 A with 100 W or 40 A with 200 W module

  • Constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP)

  • Measure voltage and current simultaneously, static and dynamic loads

Modules



N6791A

N6792A

Current

20 A

40 A

Voltage

60 V

60 V

Maximum power

100 W

200 W

Number of slots

1

2

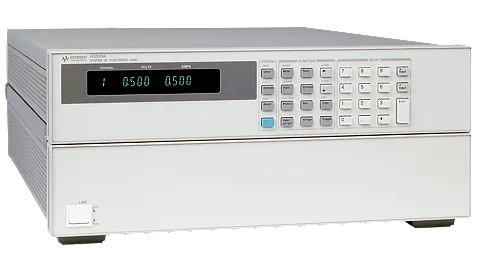

N3300 Series DC Electronic Loads



Key Features

  • Full-rack, 6-slot mainframe (N3300A) or half-rack, 2-slot mainframe (N3301A)

  • Up to 6 modules as single or parallel loads up to 1800 W input in one single mainframe

  • Measure voltage and current simultaneously on each electronic load module in constant: current (CC), voltage (CV) and resistance (CR) mode

  • Download command lists for fast test execution

  • GPIB interface

  • Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic

Modules



N3302A

N3303A

N3304A

N3305A

N3306A

N3307A

Current

0 to 30 A

0 to 10 A

0 to 60 A

0 to 60 A

0 to 120 A

0 to 30 A

Voltage

0 to 60 V

0 to 240 V

0 to 60 V

0 to 150 V

0 to 60 V

0 to 150 V

Maximum power at 40° C

150 W

250 W

300 W

500 W

600 W

250 W

Number of slots

1

1

1

2

2

1

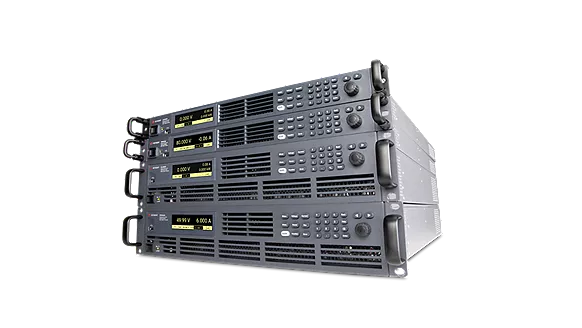

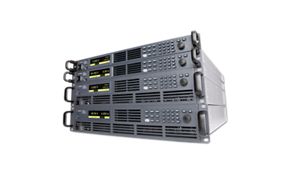

EL4900 Series Regenerative DC Electronic Loads



Key Features

  • Stackable parallel connections up to 16 units
  • Protection from over-voltage, over-current, over-power, over-temperature, and voltage transient drop
  • Support industrial interface GPIB, USB, LAN, CAN, Analog and RS232
  • Average mode to deliver accurate voltage and current measurements
  • Digitized mode to capture dynamic current or voltage profiles
  • Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic

Modules



EL4913A

EL4915A

EL4916A

EL4923A

EL4925A

EL4926A

Current

0 to 40 A

0 to 12 A

0 to 8 A

0 to 80 A

0 to 36 A

0 to 24 A

Voltage

0 to 80 V

0 to 500 V

0 to 800 V

0 to 80 V

0 to 500 V

0 to 800 V

Input Power

2000 W

2000 W

2000 W

4000 W

4000 W

4000 W

Number of slots

1

1

1

1

1

1



EL4933A

EL4935A

EL4936A

EL4943A

EL4945A

EL4946A

Current

0 to 120 A

0 to 36 A

0 to 24 A

0 to 240 A

0 to 72 A

0 to 48 A

Voltage

0 to 80 V

0 to 500 V

0 to 800 V

0 to 80 V

0 to 500 V

0 to 800 V

Input Power

6000 W

6000 W

6000 W

12000 W

12000 W

12000 W

Number of slots

1

1

1

1

1

1








Data Sheet: 3120-1430

www.keysight.com/find/EL30000















Data Sheet: N6700-90001
www.keysight.com/find/N6791A

www.keysight.com/find/N6792A















Data Sheet: 5980-0232E
www.keysight.com/find/n3300













Data Sheet: 3125-1394EN

www.keysight.com/find/EL4900
