Instructions
From the lists below, match voltage current, or power to requirements of the application.
E36100 Series
|
Model |
Max Volts |
Max Amps per Output |
Max Watts per Output |
Outputs |
Ranges |
Interface |
Rack Size |
|

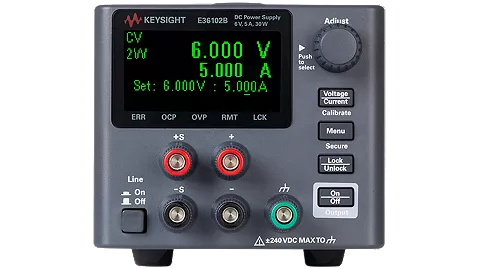

E36102B |
6 |
5 |
30 |
1 |
1 |
USB, LAN |
¼ w x 2U h |
|
E36103B |
20 |
2 |
40 |
1 |
1 |
USB, LAN |
¼ w x 2U h |
|
E36104B |
35 |
1 |
35 |
1 |
1 |
USB, LAN |
¼ w x 2U h |
|
E36105B |
60 |
0.6 |
36 |
1 |
1 |
USB, LAN |
¼ w x 2U h |
|
E36106B |
100 |
0.4 |
40 |
1 |
1 |
USB, LAN |
¼ w x 2U h |
E3600 Series
|
Model |
Max Volts |
Max Amps per Output |
Max Watts per Output |
Outputs |
Ranges |
Interface |
Rack Size |
|
E3620A |
25/25 |
1/1 |
25 |
2 |
1 |
none |
½ w x 2U h |
|
E3630A |
20/6/20 |
0.5/2.5/0.5 |
10/15/10 |
3 |
1 |
none |
½ w x 2U h |
|
E3632A |
30/15 |
4/7 |
120/105 |
1 |
2 |
GPIB |
½ w x 3U h |
|
E3633A |
20/8 |
10/20 |
200 |
1 |
2 |
GPIB |
½ w x 3U h |
|
E3634A |
50/25 |
4/7 |
200 |
1 |
2 |
GPIB |
½ w x 3U h |
|
E3640A |
20/8 |
1.5/3 |
30/24 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3641A |
60/35 |
0.5/0.8 |
30/28 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3642A |
20/8 |
2.5/5 |
50/40 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3643A |
60/35 |
0.8/1.4 |
48/49 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3644A |
20/8 |
4/8 |
80/64 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3645A |
60/35 |
1.3/2.2 |
78/77 |
1 |
2 |
GPIB |
½ w x 2U h |
|
E3646A |
20/8 |
1.5/3 |
30/24 |
2 |
2 |
GPIB |
½ w x 3U h |
|
E3647A |
60/35 |
0.5/0.8 |
30/28 |
2 |
2 |
GPIB |
½ w x 3U h |
|
E3648A |
20/8 |
2.5/5 |
50/40 |
2 |
2 |
GPIB |
½ w x 3U h |
|
E3649A |
60/35 |
0.8/1.4 |
48/49 |
2 |
2 |
GPIB |
½ w x 3U h |
E36300 Series
|
Model |
Max Volts |
Max Amps per Output |
Max Watts per Output |
Outputs |
Ranges |
Interface |
Rack Size |
|
E36311A |
25/25/6 |
1/1/5 |
80 |
3 |
1 |
USB |
½ w x 3U h |
|
EDU36311 |
6/3/30 |
5/1/1 |
90 |
3 |
1 |
USB/ LAN |
n/a |
|
E36312A |
25/25/6 |
1/1/5 |
80 |
3 |
1 |
USB/ LAN/ GPIB |
½ w x 3U h |
|
E36313A |
25/25/6 |
2/2/10 |
160 |
3 |
1 |
USB/ LAN/ GPIB |
½ w x 3U h |
E36200 Series
|
Model |
Max Volts |
Max Amps per Output |
Max Watts per Output |
Outputs |
Ranges |
Interface |
Rack Size |
|
E36231A |
30 |
20 |
200 |
1 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
|
E36232A |
60 |
10 |
200 |
1 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
|
E36233A |
30/30/60 |
20/ 20 or 40 |
200/ 200 or 400 |
2 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
|
E36234A |
60/ 60 or 120 |
10/ 10 or 20 |
200/ 200 or 400 |
2 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
E36150 Series
|
Model |
Max Volts |
Max Amps per Output |
Max Watts per Output |
Outputs |
Ranges |
Interface |
Rack Size |
|
E36154A |
30 |
80 |
800 |
1 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
|
E36155A |
60 |
40 |
800 |
1 |
auto |
USB/ LAN/ GPIB |
½ w x 3U h |
