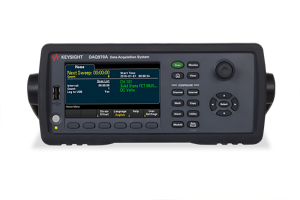

DAQ970A and DAQ973A Data Acquisition System

Key Features
  • 3-slot mainframe with advanced 6½ DMM, improved accuracy and faster measurement speed with up to 800kSa/Sec sampling rate
  • Choose from 10 plug-in modules with up to 120 single-ended (60 2-wire) channels
  • Scan rate up to 450 channels/sec with solid state multiplexer module
  • Measures and converts 12 different input signals: temperature with thermocouples, RTDs and thermistors, dc/ac volts, 2- and 4-wire resistance, frequency and period, dc/ac current strain, and capacitance
  • Intuitive user interface for easy channel setup and measurement display formats (number, bar meter, trend chart, histogram)
  • SCPI programming compatible with 34972A & 34970A
  • Log direct to USB port on  instrument front panel
  • Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
  • LAN and USB for easy connectivity to a PC (DAQ973A includes GPIB)
Qualify
  • Need to measure temperature? Sell any DAQM900A/901A/902A modules. They differ in channel scanning speed and max power input.
  • Need higher ch scan rate? Sell DAQM900A module at 450 ch/s or introduce them to the 34980A.
  • Need more than 60 channels? Sell the DAQM908A, add a second DAQ970A to run simultaneously or the 34980A (up to 560 channels)
  • Need a higher number of channels? DAQ970A or DAQ973A and DAQM908A.
  • Need to easily view, capture, export data and screen images?
  • Download free BenchVue Basic app: www.keysight.com/find/BVBasic
  • Need a 34972A replacement? Sell DAQ970A.
Plug-in Modules

DAQM900A 20-channel solid-state multiplexer module
DAQM901A 20-channel multiplexer module (2/4-wire)
DAQM902A 16-channel multiplexer module (2/4-wire)
DAQM903A 20-channel actuator/GP switch module
DAQM904A 4 x 8 two-wire matrix module
DAQM905A 2 GHz dual 1:4 RF mux, 50 Ω module
DAQM907A Multifunction module, DAC, DIO, counter
DAQM908A 40-channel single-ended multiplexer module
DAQM909A 4-channel simultaneous sampling module
DAQM910A 20-channel multiplexer (2/4-wire)

Optional Accessories

DAQA190A Rackmount kit
DAQA191A 2U dual flange kit
DAQA194A Dual lock link kit
34307A 10-pack J-type thermocouples
34308A 5-pack 10-kΩ thermistors
R-50C-011-3 3 Year Calibration Plan
R-50C-011-5 5 Year Calibration Plan
R-51B-001-5Z 5 Year Warranty Plan


Related Products
  • GPIB card and cables (DAQ973A)
  • Oscilloscope
  • Function generator
  • Power supply

Model DAQM900A DAQM901A DAQM902A DAQM903A DAQM904A DAQM905A DAQM907A DAQM908A DAQM909A DAQM910A
Channels 20 ch multiplexer 20 ch multiplexer + 2 current ch 16 ch multiplexer 20 ch actuator/GP swich 4x5 matrix Dual 4 ch RF mux 50 Ω Multifunction module 40 ch single- ended mux 4 ch digitizer 20 ch multiplexer
Type 2-wire solid state (4-wire selectable) 2-wire reed (4-wire selectable) SPDT/form C 2-wire armature Common low (unterminated) Two 8-bit digital I/O ports 26-bit event counter Two 16-bit analog outputs 1-wire armature (common low) Simultanious sampling 2-wire armature (4-wire selectable)
Speed (ch/sec) 450 80 250 120 120 60       100 800 kSa/s* 80 ch/s
Max V 120 V 300 V 42 V ± 12 V 300 V 36 Vpk 40 Vpk
Max A 120 V 300 V 42 V ± 12 V 300 V 36 Vpk 1A
Bandwidth 10 MHz           100 kHz dc 10 Mz   10 mHz
Thermal Offset <4 µV 0 µV <4 µV <1 µV <4 µV           0uv
