Key Features
- Efficient single calibration standard
- Precision, accurate transfer standards
- Broad choice of solutions
- Frequency coverage down to DC
- Supported by trusted Keysight vector network analyzers
N755x Series 2-port Economy Electronic Calibration Modules (ECal)
Product Specifications
|
Model |
Frequency |
Number of Ports |
Connector Type |
|
N7550/1/2/3/4A |
DC to 4/6.5/9/14/18 GHz |
2 |
3.5 mm, Type-N |
|
N7555A |
DC to 26.5 GHz |
3.5 mm |
N443xD Series 4-port RF Electronic Calibration Modules (ECal)
Product Specifications
|
Model |
Frequency |
Number of Ports |
Connector Type |
|
N4431D |
DC to 13.5 GHz |
4 |
Type-N, 3.5 mm, 7-16, 4.3-10 |
|
N4432D |
DC/300 KHz to 18 GHz |
Type-N, 3.5 mm |
|
|
N4433D |
DC/300 KHz to 26.5 GHz |
3.5 mm |
8509xD Series 2-port Electronic Calibration Modules (ECal)
Product Specifications
|
Model |
Frequency |
Number of Ports |
Connector Type |
Mixed Connector Option on Port B |
|
85091D |
DC/300 kHz to 9 GHz |
2
|
7 mm |
N/A |
|
85092D |
DC/300 kHz to 9 GHz |
Type-N |
3.5 mm, 7-16, 4.3-10 |
|
|
85093D |
DC/300 kHz to 9 GHz |
3.5 mm |
Type-N, 7-16, 4.3-10
|
|
|

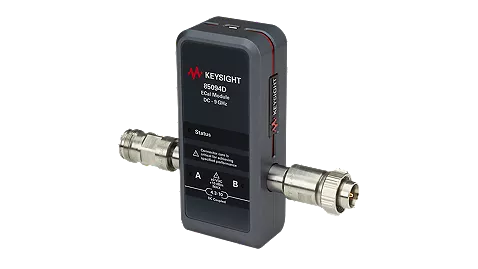

85094D |
DC/300 kHz to 9 GHz |
4.3-10 |
Type-N, 3.5 mm, 7-16
|
|
|
85096D |
DC/300 kHz to 9 GHz |
Type-N (75 ohm) |
N/A
|
|
|
85098D |
DC/300 kHz to 7.5 GHz |
7-16 |
Type-N, 3.5 mm, 4.3-10
|
|
|
85099D |
DC/300 kHz to 9 GHz |
Type-F (75 ohm) |
N/A
|
| Refer to the technical overview for VNA compatibility with the ECal Technical overview: 5963-3743E |
- P937xA Streamline Series VNA
- P937xB and P938xB Streamline Series VNA
- FieldFox B-Series microwave analyzers
- E5061B ENA
- E5063A ENA
