Amplifiers
Technical Overview: 5989-5743EN
www.keysight.com/find/mta
Low-noise and system amplifiers for signal conditioning
Ultra-broadband, high-performance amplifiers eliminate the need for crossover networks and multiple power supplies to support multiple narrowband amplifiers.
Product Terms
Noise figure: An excellent amplifier noise figure significantly reduces the overall test-system noise figure.
Gain: High gain increases available power to spectrum analyzers and improves test-system sensitivity.
Key Features
-
Broadband performance up to 50 GHz optimizes the operating range of your test systems
-
High-output power boosts available power for measurements
| Key Product Differentiator: Excellent noise figure and gain significantly reduces overall test system noise figure across broadband frequency up to 50 GHz. |
|
Type |
➤ Why Buy? 1-Minute Sell |
Popular Models |
Frequency Range |
Gain |
Noise Figure |
|
Preamplifiers |
– Low-noise, high-gain – Improves sensitivity of test equipment |
87405B |
10 MHz to 4 GHz |
22 dB |
3.5 dB at 4 GHz |
|
87405C |
100 MHz to 18 GHz |
25 dB |
3.8 dB at 18 GHz |
||
|
– USB plug-and play features – Automatic gain correction value with temperature compensation – Automatic transfer of calibration data (S-parameter and noise figure) – Rugged and portable for bench top or remote front end applications |

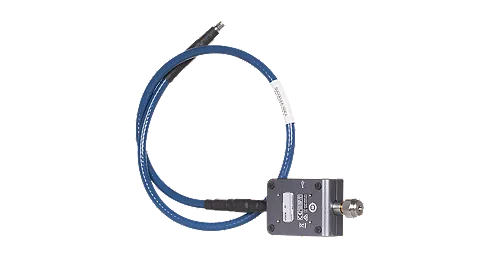

U7227A |
100 MHz to 4 GHz |
19 dB |
5 dB at 4 GHz |
|
|
U7227C |
100 MHz to 26.5 GHz |
23 dB* |
5 dB at 26.5 GHz |
||
|
U7227F |
2 to 50 GHz |
27dB* |
10 dB at 50 GHz |
||
|
Microwave System Amplifiers |
– Ultra-broadband system amplifiers – Low noise, high gain – Provides additional power to recover system losses and boost available power |
83017A |
50 MHz to 26.5 GHz |
25 dB |
13 dB at 26.5 GHz |
|
83020A |
2 to 26.5 GHz |
23 dB |
13 dB at 26.5 GHz |
||
|

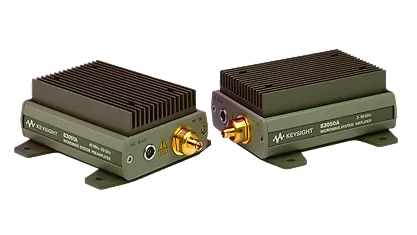

83050A |
2 to 50 GHz |
21 dB |
10 dB at 50 GHz |
* The U7227A/C/F, USB preamplifier designed to provide positive gain slope for gain compensation when used with X-Series signal analyzers.
Attenuators
Brochure: 5989-6948EN
www.keysight.com/find/mta
High reliability and exceptional repeatability ultimately reducing downtime
Available in both RF and microwave frequencies as well as fixed or programmable.
Key Features
-
Programmable step attenuators offer fast, precise signal-level control up to 50 GHz
-
Step attenuators can be cascaded in series offering an overall range of 121 dB in 1dB steps
-
Fixed attenuators offer precise attenuation, flat frequency response, and low SWR over broad frequency range up to 67 GHz
| Key Product Differentiator: Excellent insertion loss repeatability of 0.03 dB and attenuation accuracy for accurate repeatable measurement results. |
|
Type |
Popular Models |
Frequency Range |
Attenuation Range |
Attenuation Step |
|
Fixed attenuation |
8491A |
DC to 12.4 GHz |
3 to 60 dB |
n/a |
|
8498A |
DC to 18 GHz |
30 dB |
||
|
8493C |
DC to 26.5 GHz |
3 to 40 dB |
||
|
8490G |
DC to 67 GHz |
3 to 40 dB |
||
|
Manual Step |
8494A |
DC to 4 GHz |
0 to 11 dB |
1 dB |
|
8494A |
DC to 4 GHz |
0 to 110 dB |
10 dB |
|
|
8495D |
DC to 26.5 GHz |
0 to 70 dB |
10 dB |
|
|
Programmable |
8494G |
DC to 4 GHz |
0 to 11 dB |
1 dB |
|
8497K |
DC to 26.5 GHz |
0 to 90 dB |
10 dB |
|
|

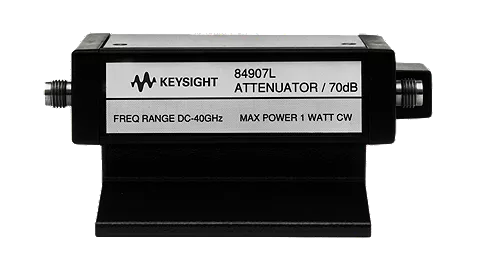

84907L |
DC to 40 GHz |
0 to 70 dB |
10 dB |
|
|
84908M |
DC to 50 GHz |
0 to 65 dB |
5 dB |
|
|
One box attenuation control unit |
J7201A (1-channel) |
DC to 6 GHz |
0 to 121 dB |
1, 5, 10 dB |
|
J7201B (1-channel) |
DC to 18 GHz |
0 to 121 dB |
1, 5, 10 dB |
|
|
J7201C (1-channel) |
DC to 26.5 GHz |
0 to 101 dB |
1, 5, 10 dB |
|
|
J7204A (4-channels) |
DC to 6 GHz |
0 to 121 dB |
1, 5, 10 dB |
|
|
J7204B (4-channels) |
DC to 18 GHz |
0 to 121 dB |
1 dB |
|
|
J7205A (5-channels) |
DC to 6 GHz |
0 to 121 dB |
1 dB |
|
|
J7205B (5-channels) |
DC to 18 GHz |
0 to 121 dB |
1 dB |
