N9912C RF Analyzer
Key Features
- Industry's most flexible handheld analyzer
- Frequency: 3 kHz up to 4, 6.5, or 10 GHz based on option
- Configurable for sole or combination of CAT, VNA, and SA with different maximum frequency
- Maximum real-time bandwidth up to 40 MHz
- Frequency upgradeable up to 10 GHz
N9913/14/15C RF Combination Analyzer
Key Features
- Frequency: 3 kHz up to 4, 6.5, or 10 GHz
- Configurable for sole or combination of CAT, VNA, and SA
- Up to 120 MHz analysis and real-time bandwidth
- Direct replacement to the A- and B- RF FieldFox combo analyzers
Key Specifications
| Function | Description |
| Cable antenna analyzer and vector network analyzer | |
| Frequency | 3 kHz to 4, 6.5, or 10 GHz |
| Spectrum/signal analyzer | |
| Frequency | 3 kHz to 4, 6.5, or 10 GHz |
| Preamplifier (optional) | 3 kHz to 10 GHz |
| Real-time spectrum analyzer (RTSA) | |
| Frequency | 3 kHz to 4, 6.5, or 10 GHz |
| Maximum real-time bandwidth | 120 MHz, 40 MHz (for N9912C) |
| Display views | Density, spectrogram, real-time spectrum |
| Noise figure analyzer | |
| Frequency | 3 kHz to 4, 6.5, or 10 GHz (not available on N9912C) |
| Independent source | |
| Frequency | 3 kHz up to 10 GHz |
| General | |
| Environmental | Meets MIL-PRF-28800F Class 2, type tested for IP53 |
| Temperature | Operating: −10 to +55 °C (14 to 131 °F) |
| Dimensions and weight | 292 x 188 x 82 mm3 (11.5” x 7.4” x 3.2”); 3.34 kg (7.35 lb) |

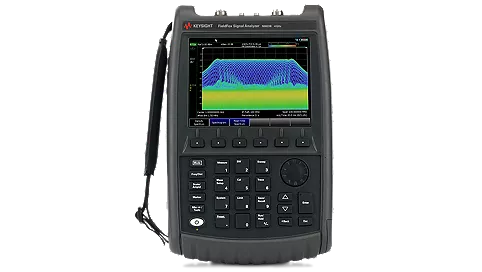

N9933/34/35C Signal Analyzer Key Features
- Frequency: 3 kHz up to 4, 6.5, or 10 GHz based on model
- Up to 120 MHz analysis and real-time bandwidth
- Support the full-set of FieldFox applications
- Form-fit-functional replacement to the A- and B- Series RF FieldFox signal analyzers
N9912C Frequency Upgrades
Upgrading maximum frequency and/or adding capabilities via software licensing.
| Option | Description |
| Cable antenna tester/analyzer (CAT) | |
| N9912CU-CA4 | Add 4 GHz CAT |
| N9912CU-CA6 | Add 6.5 GHz CAT |
| N9912CU-CAX | Add 10 GHz CAT |
| N9912CU-C46 | CAT upgrade from 4 to 6.5 GHz |
| N9912CU-C4X | CAT upgrade from 4 to 10 GHz |
| N9912CU-C6X | CAT upgrade from 6.5 to 10 GHz |
| Vector network analyzer (VNA) | |
| N9912CU-NA4 | Add 4 GHz VNA |
| N9912CU-NA6 | Add 6.5 GHz VNA |
| N9912CU-NAX | Add 10 GHz VNA |
| N9912CU-N46 | VNA upgrade from 4 to 6.5 GHz |
| N9912CU-N4X | VNA upgrade from 4 to 10 GHz |
| N9912CU-N6X | VNA upgrade from 6.5 to 10 GHz |
| Spectrum/signal analyzer (SA) | |
| N9912CU-SA4 | Add 4 GHz SA |
| N9912CU-SA6 | Add 6.5 GHz SA |
| N9912CU-SAX | Add 10 GHz SA |
| N9912CU-S46 | SA upgrade from 4 to 6.5 GHz |
| N9912CU-S4X | SA upgrade from 4 to 10 GHz |
| N9912CU-S6X | SA upgrade from 6.5 to 10 GHz |
Data Sheet: 3123-1696EN
N9912C Analyzer Options
Any combination of types may be included in the same N9912C.
| Option | Description |
| Cable antenna tester/analyzer (CAT) | |
| N9912C-CA4 | 4 GHz CAT |
| N9912C-CA6 | 6.5 GHz CAT |
| N9912C-CAX | 10 GHz CAT |
| Vector network analyzer (VNA) | |
| N9912C-NA4 | 4 GHz VNA |
| N9912C-NA6 | 6.5 GHz VNA |
| N9912C-NAX | 10 GHz VNA |
| Spectrum/signal analyzer (SA) | |
| N9912C-SA4 | 4 GHz SA |
| N9912C-SA6 | 6.5 GHz SA |
| N9912C-SAX | 10 GHz SA |
