FC1 53210A
350 MHz RF Frequency Counter, 10 digits/s
FC1 53220A
350 MHz Universal Frequency Counter/Timer, 12 digits/s, 100 ps
FC1 53230A
350 MHz Universal Frequency Counter/Timer, 12 digits/s, 20 ps
- Single-channel, RF frequency counter
- One 350 MHz input channel, plus optional second channel (6 GHz or 15 GHz)
- 10 digits/second resolution
- Built-in math analysis and color, graphical display (trend and histogram)
- LXI-C/LAN, USB, GPIB
- BenchVue software makes it simple to connect, control instruments, and automate test sequences

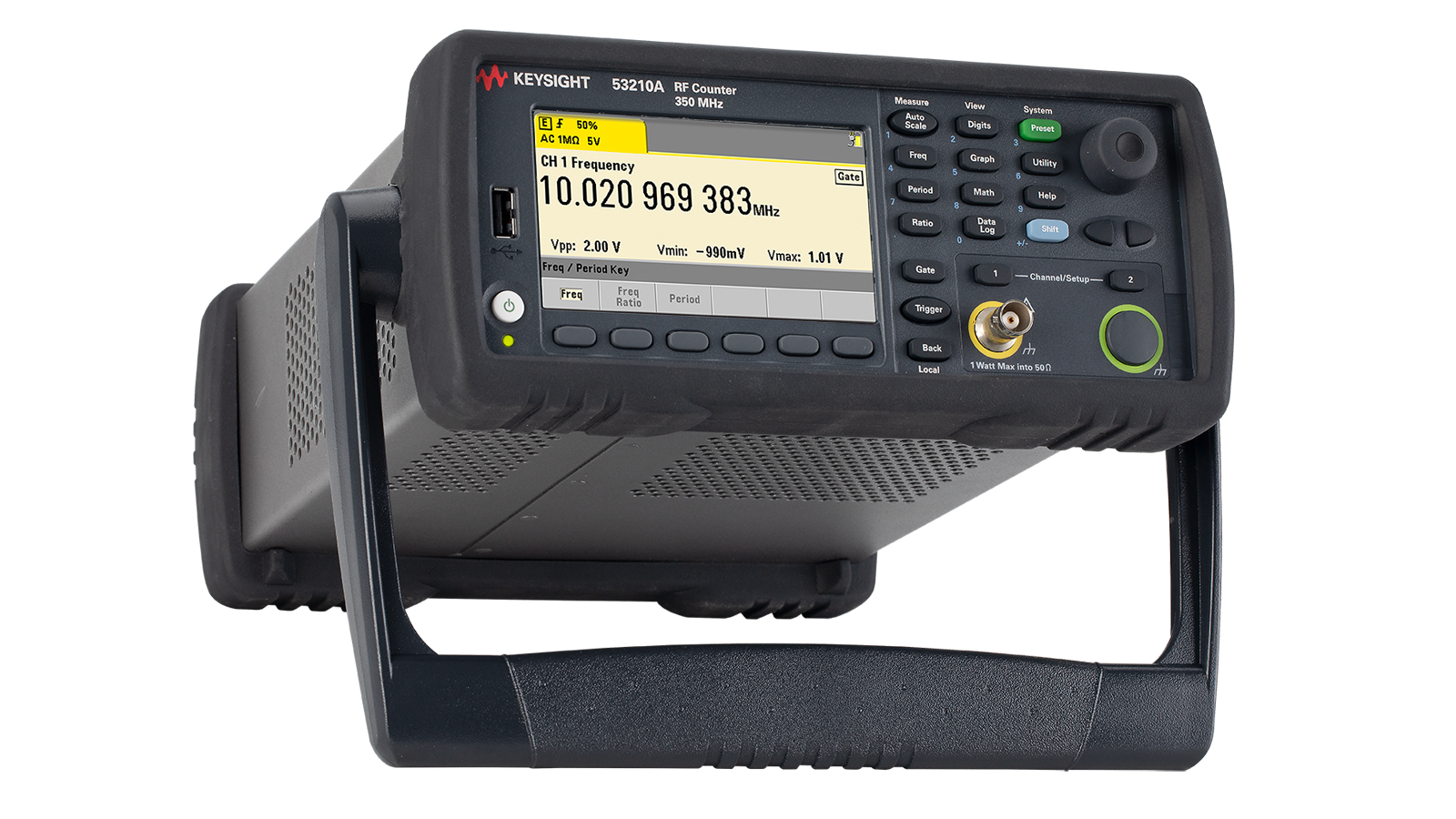

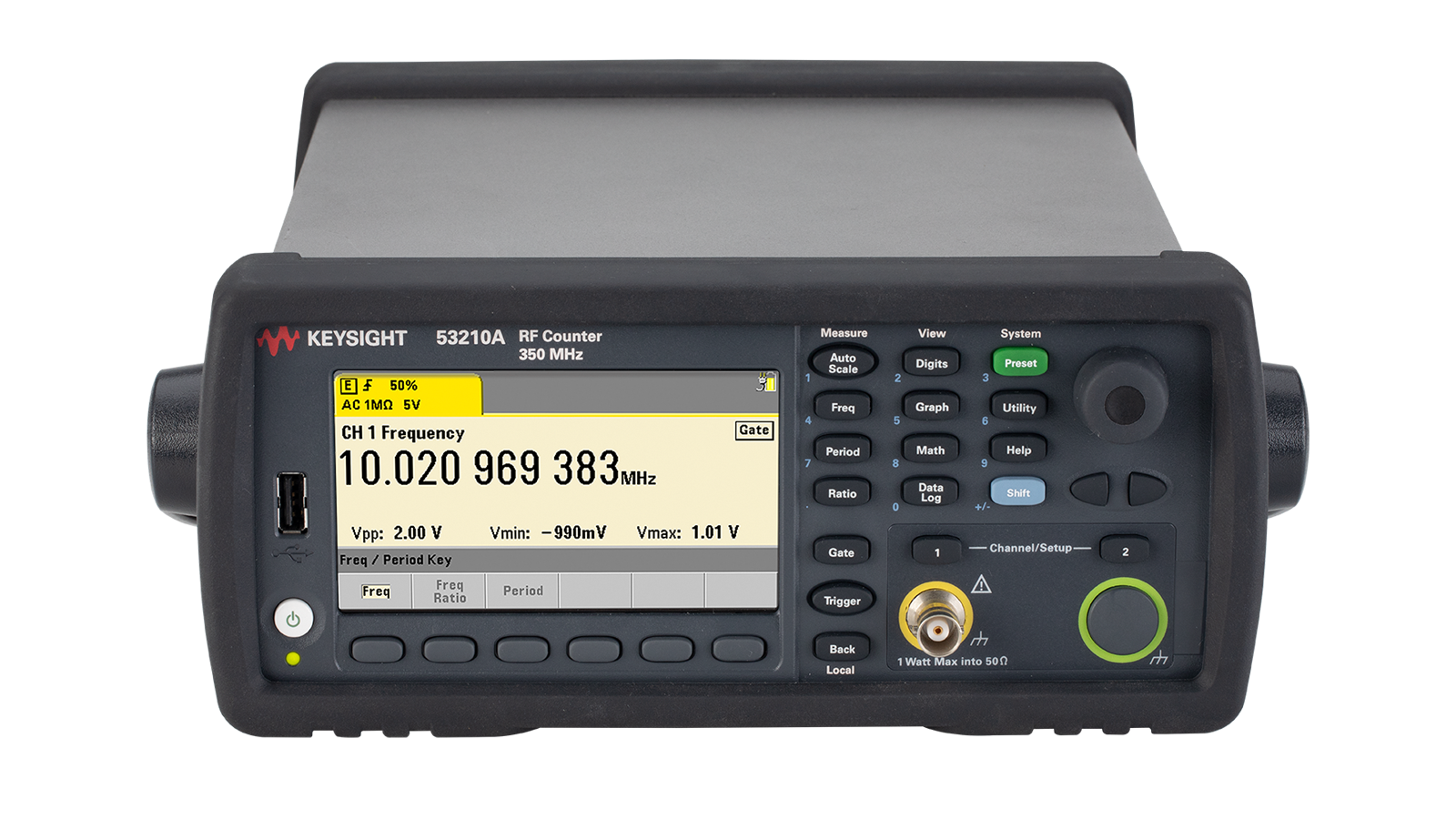

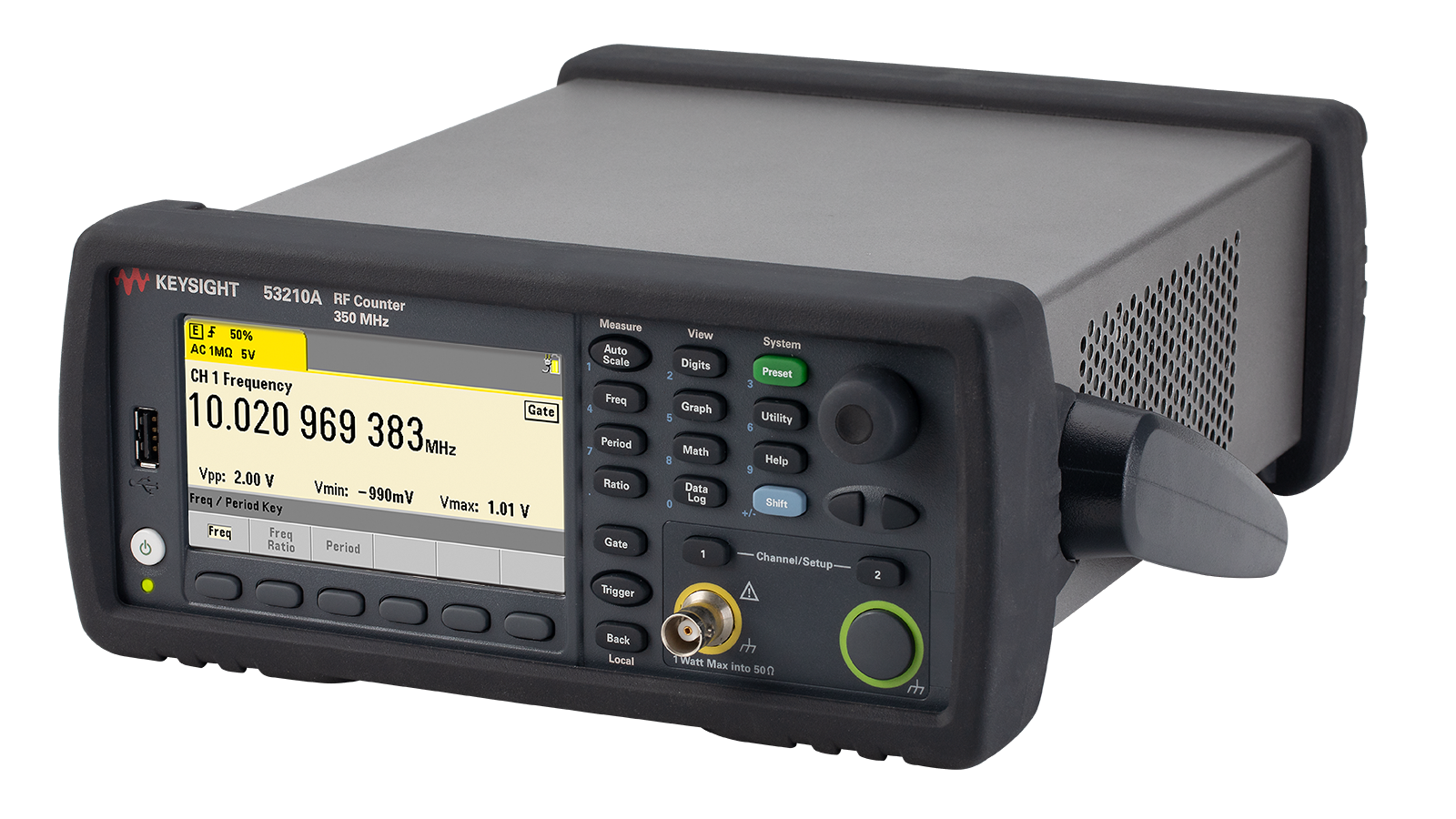

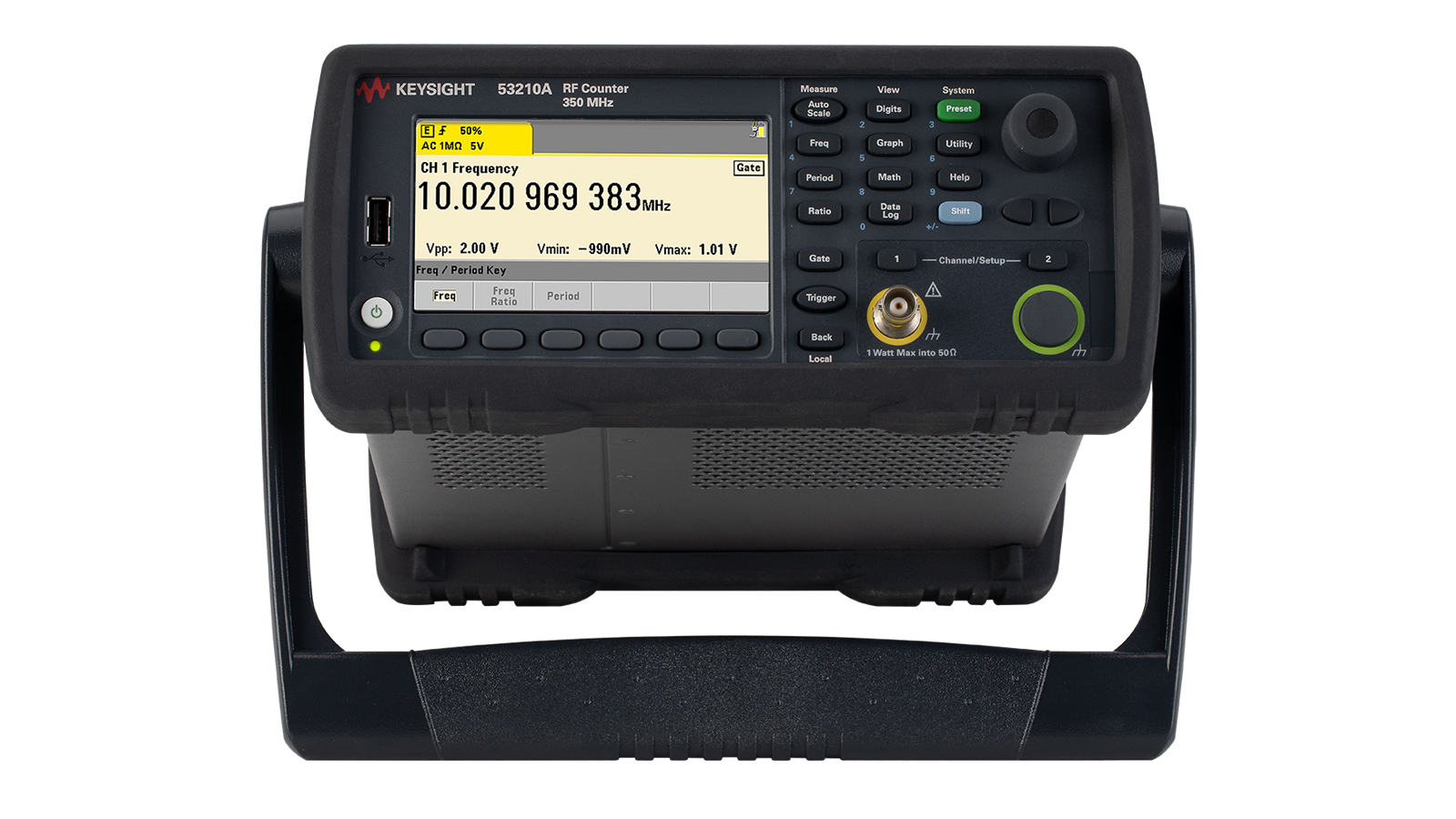

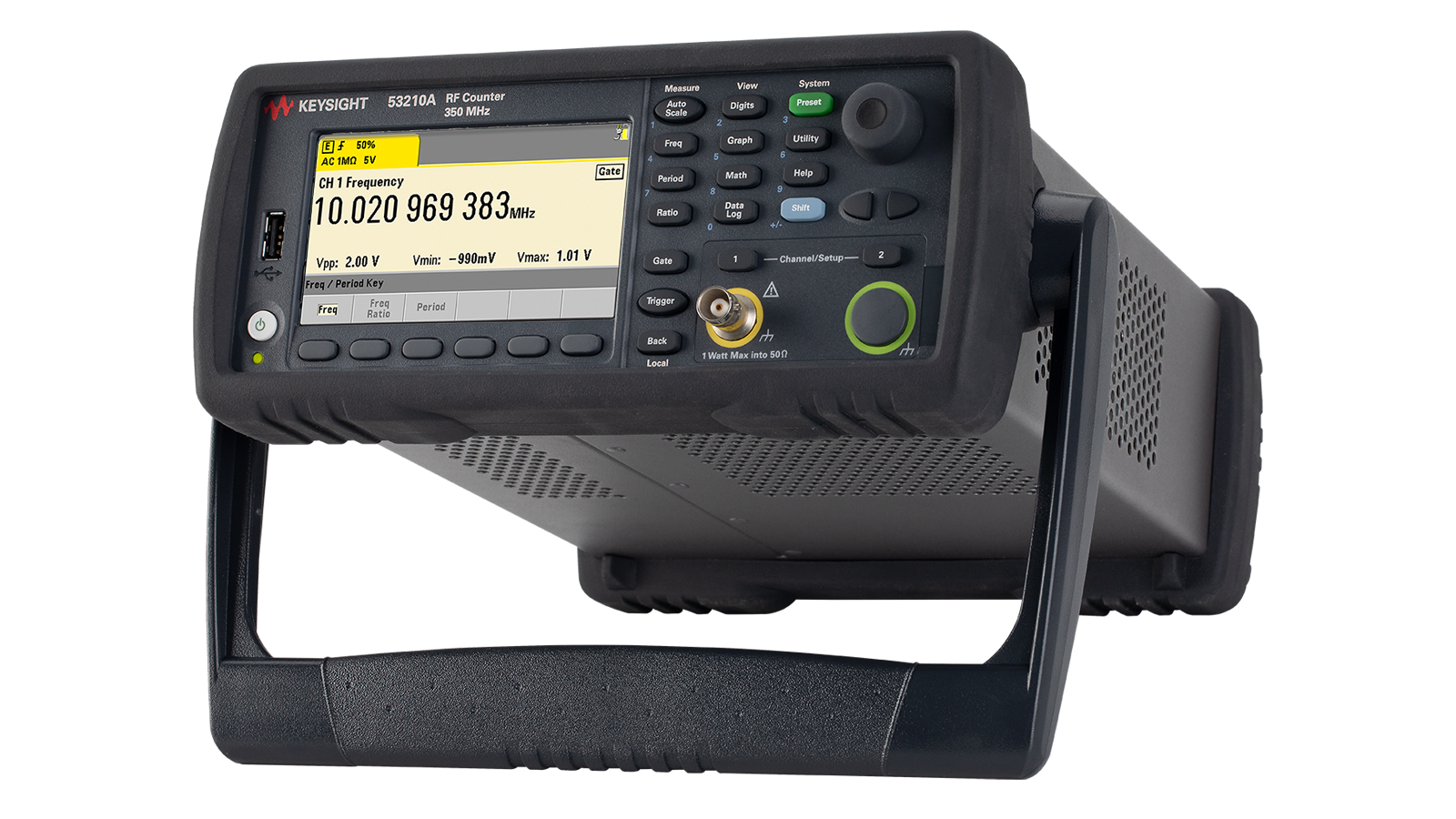

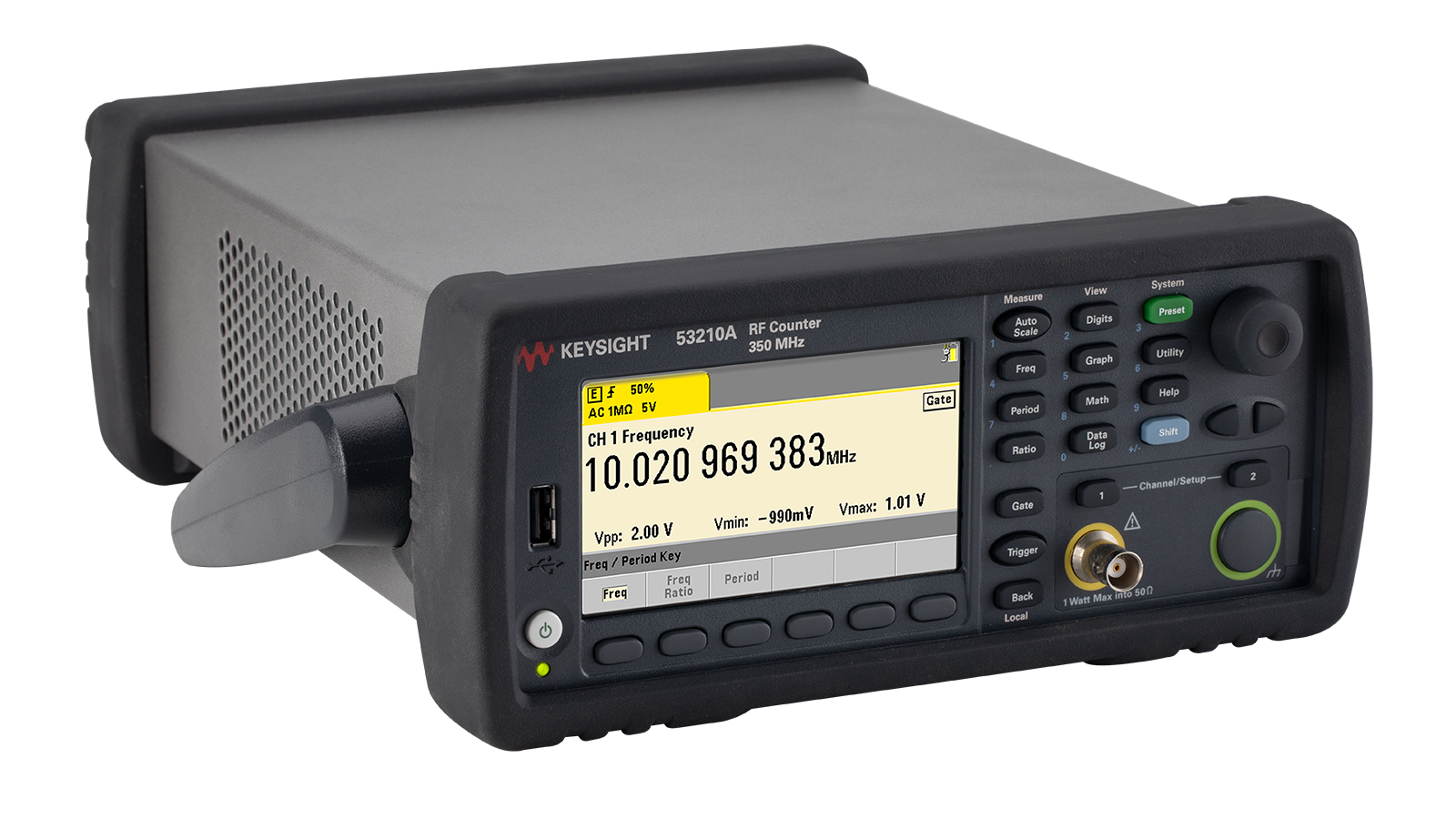

The Keysight 53210A single-channel, 350 MHz RF frequency counter is optimized to provide fast, precise frequency measurements with a simplified user interface. An optional microwave channel can be added to measure 6 or 15 GHz.
53200 Series RF & Universal Frequency Counter/Timers Overview
Calibration & Warranty
| R-51B-001-Z | Return to Keysight Warranty - 3 years |
| R-51B-SP-OC | Return to service center warranty and service plan - includes Service Pack |
| R1280SP | Return to service center warranty and service plan - includes Service Pack - DO NOT USE FOR NEW MODELS |
Key Features
- 350 MHz, optional 6 or 15 GHz microwave channels
- Large color graphical display with built-in analysis capabilities: math, statistics, histogram, trend/stripchart and data logging
- USB, LAN, GPIB (LXI)
- Control your instruments for free with the PathWave BenchVue Basic app at www.keysight.com/find/BVBasic
Additional Material
