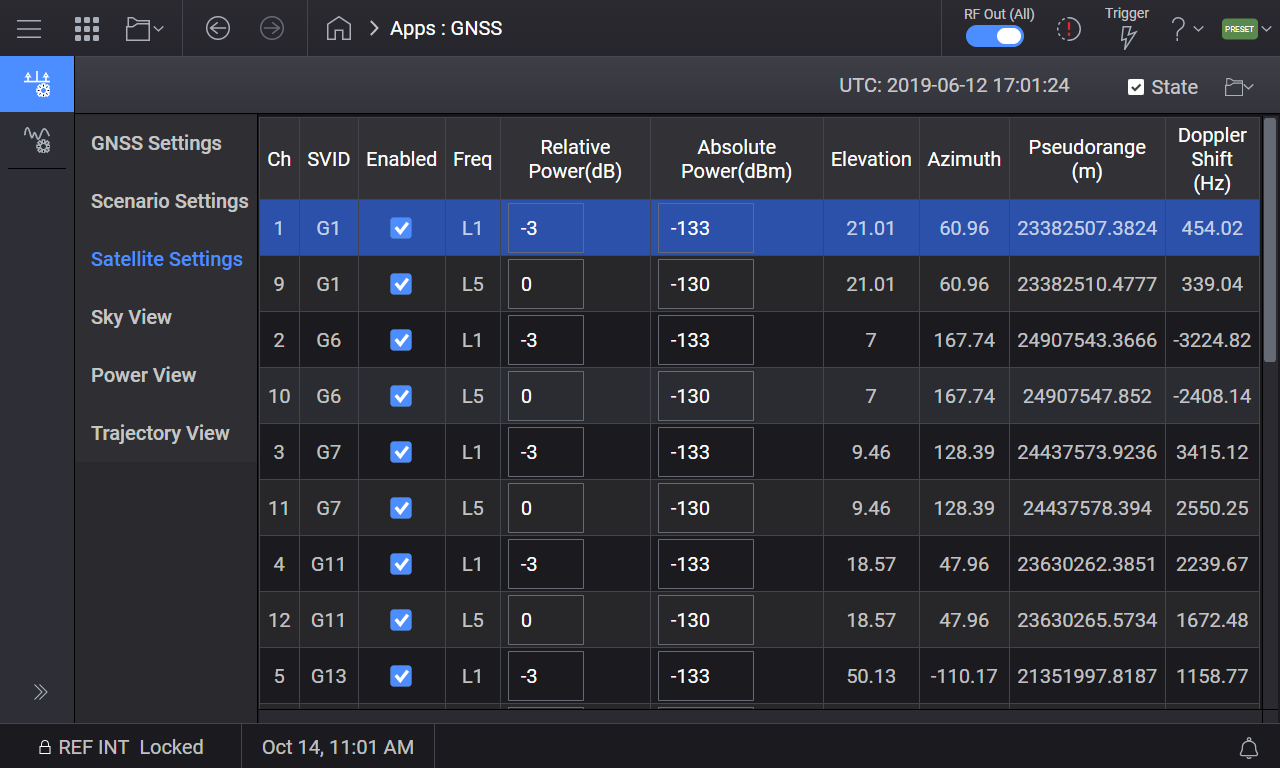

Keysight N7609APPC PathWave Signal Generation for GNSS software creates validated real-time signals that simulate satellites from the US Global Positioning System (GPS), European Galileo system and China Beidou system. The software accelerates the signal creation process with a user interface embedded in the signal generator. It supports real-time scenario generation for stationary and dynamic receivers and enables real-time control of individual satellites, including satellite on / off, and absolute or relative satellite power.

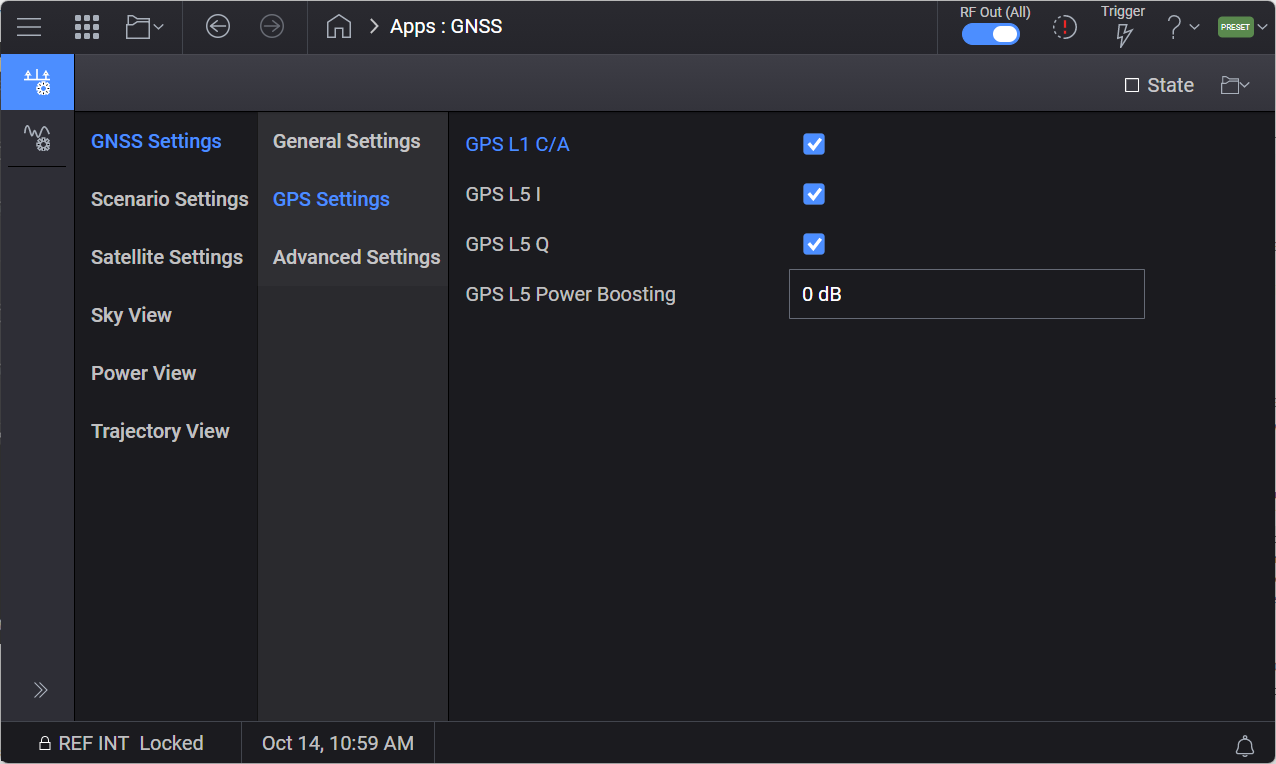

• Simulate GPS single band for L1 C/A, L5I, and L5Q, or dual band for L1 C/A + L5I, L1 C/A + L5Q, and L1 C/A + L5I + L5Q (requires bandwidth option B5X or above in instrument).
• Simulate Galileo single band for E1 OS and E5 (E5a + E5b), or dual-band for E1 OS + E5 (E5a + E5b) (requires bandwidth option B5X or above in instrument)
• Simulate Beidou single band for B1I, B1C and B2a, or dual-band for B1I+B1C+B2a (requires bandwidth option B5X or above in instrument)

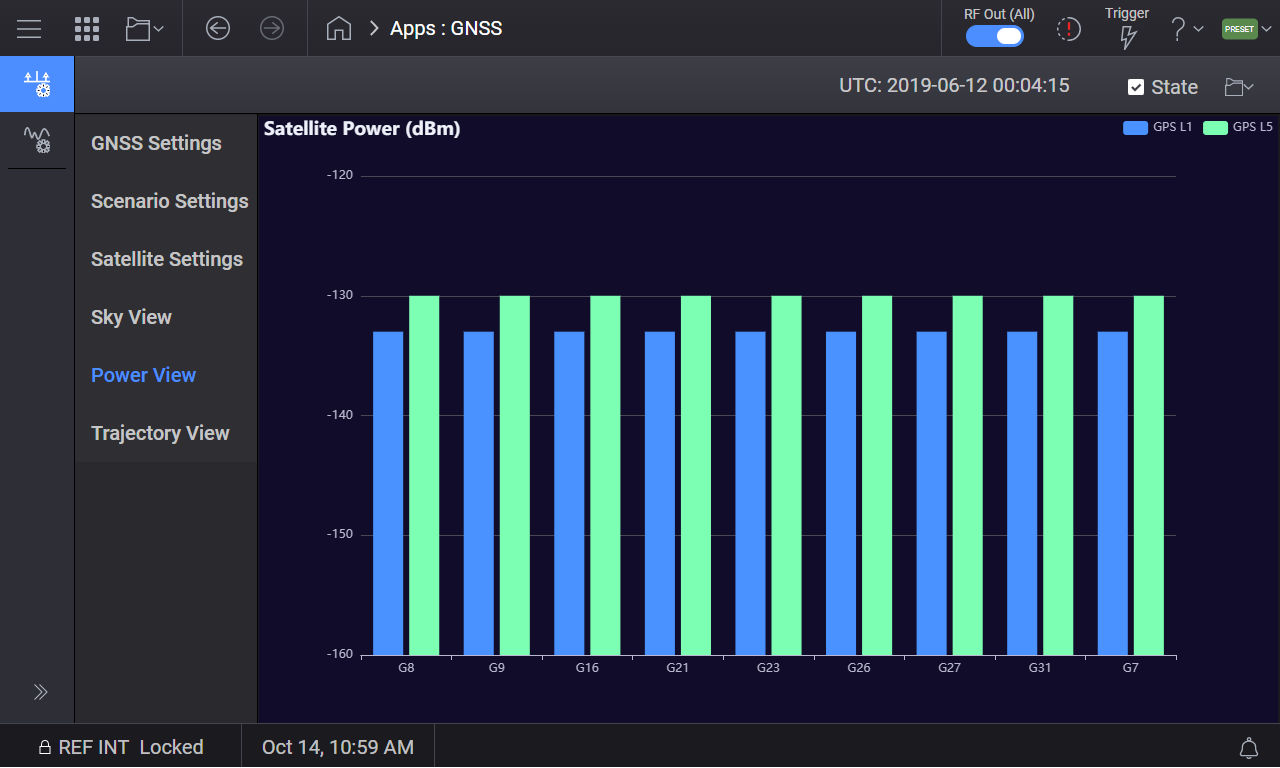

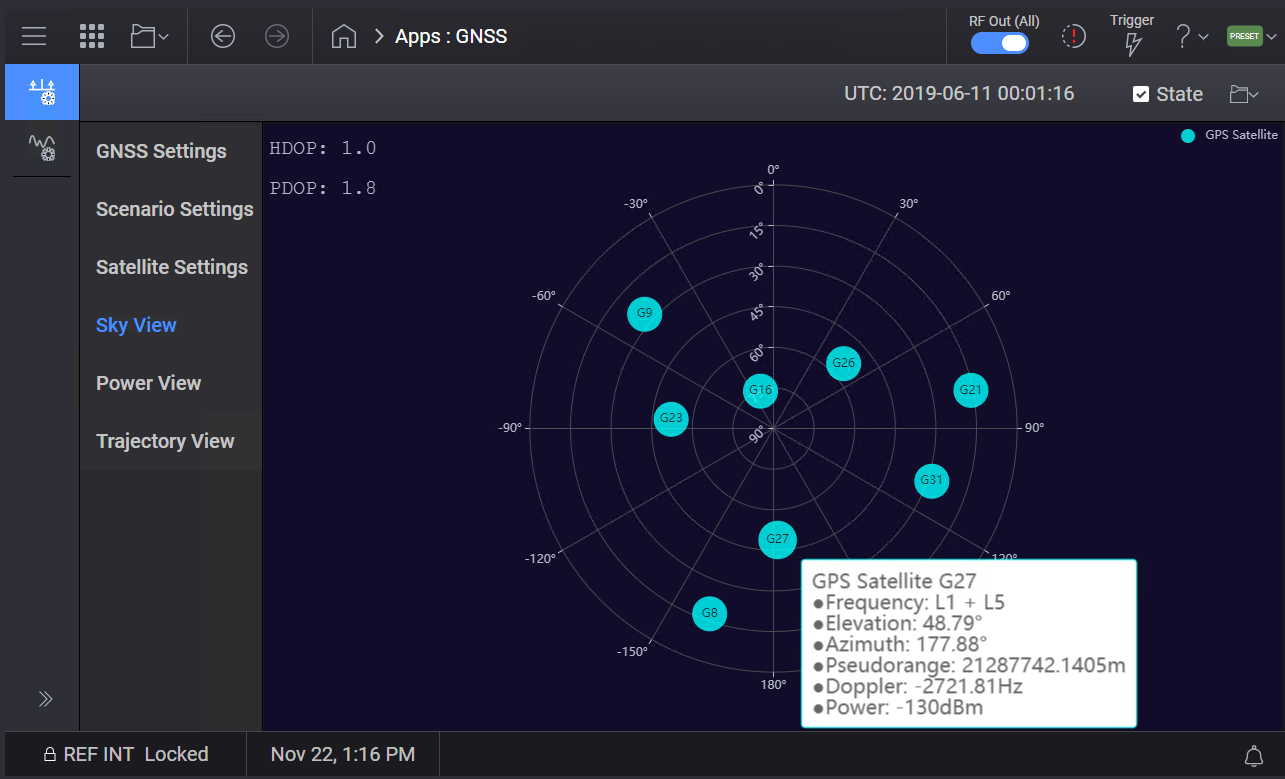

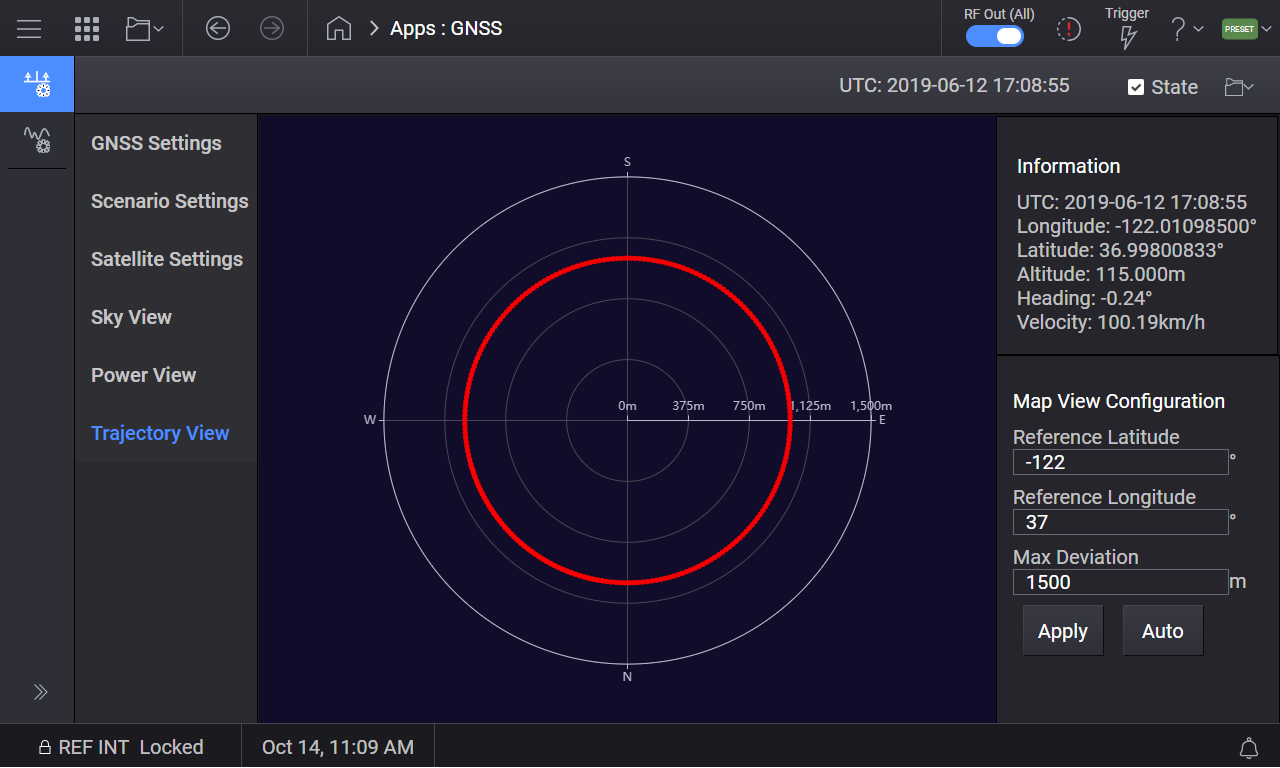

• Provide up to 96 channels for line-of-sight satellites with various real-time displays, including sky view, power view, and trajectory view.
• Provide antenna pattern testing with pattern data files recall/save.
• Add calibrated additive white Gaussian noise (AWGN) for control of carrier-to-noise ratio (requires AWGN option in instrument).
• Achieve 1 pps and 1 ms outputs.
• Support test automation with SCPI commands for all parameters.
