Create 3GPP 5G NR and 5G-Advanced compliant signal for BTS and UE testing based

• Supports signal generation based on 3GPP Releases 15, 16, 17, and 18, including LDPC and Polar channel coding, as well as multi-antenna port configurations.
• Enables downlink channel generation for PBCH, PDSCH, and PDCCH, and uplink channels for PUSCH, PUCCH, and PRACH.
• Supports downlink signalcomponents including PSS, SSS, CSI-RS, PBCH-DMRS, PDSCH-DMRS, PDSCH-PTRS, PDCCH-DMRS and uplink signal components including SRS, PUSCH-DMRS, PUCCH-DMRS, and PUCCH-PTRS.
• Provides test model presets for FR1 and FR2 frequency ranges.
• Supports bandwidths from 3 to 100 MHz for FR1 and 50/100/200/400/800/1600/2000 MHz for FR2.
• Includes support for UL FRC configurations and full-filled UL/DL configurations.
• Enables configurations of multiple BWPs and mixed numerologies within a single carrier.
• Supports multi-user channel generation for both PUSCH and PDSCH.
• Allows flexible downlink and uplink configuration with customizable subframe allocations.
• Offers single-carrier and multi-carrier signal generation capabilities.
• Support real-time PUSCH HARQ and phase compensation (requires N5182B MXG/N5172B EXG option 660)

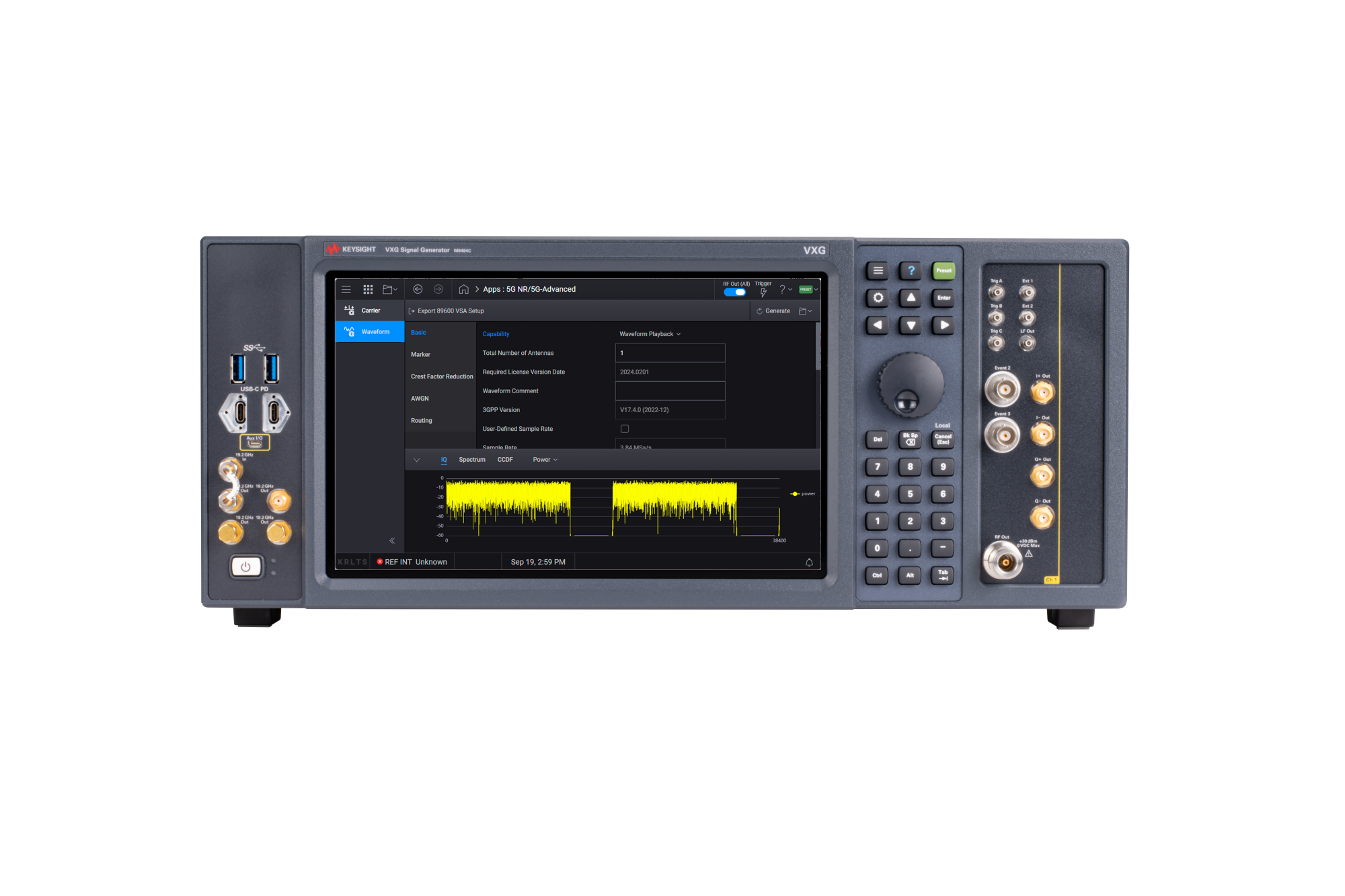

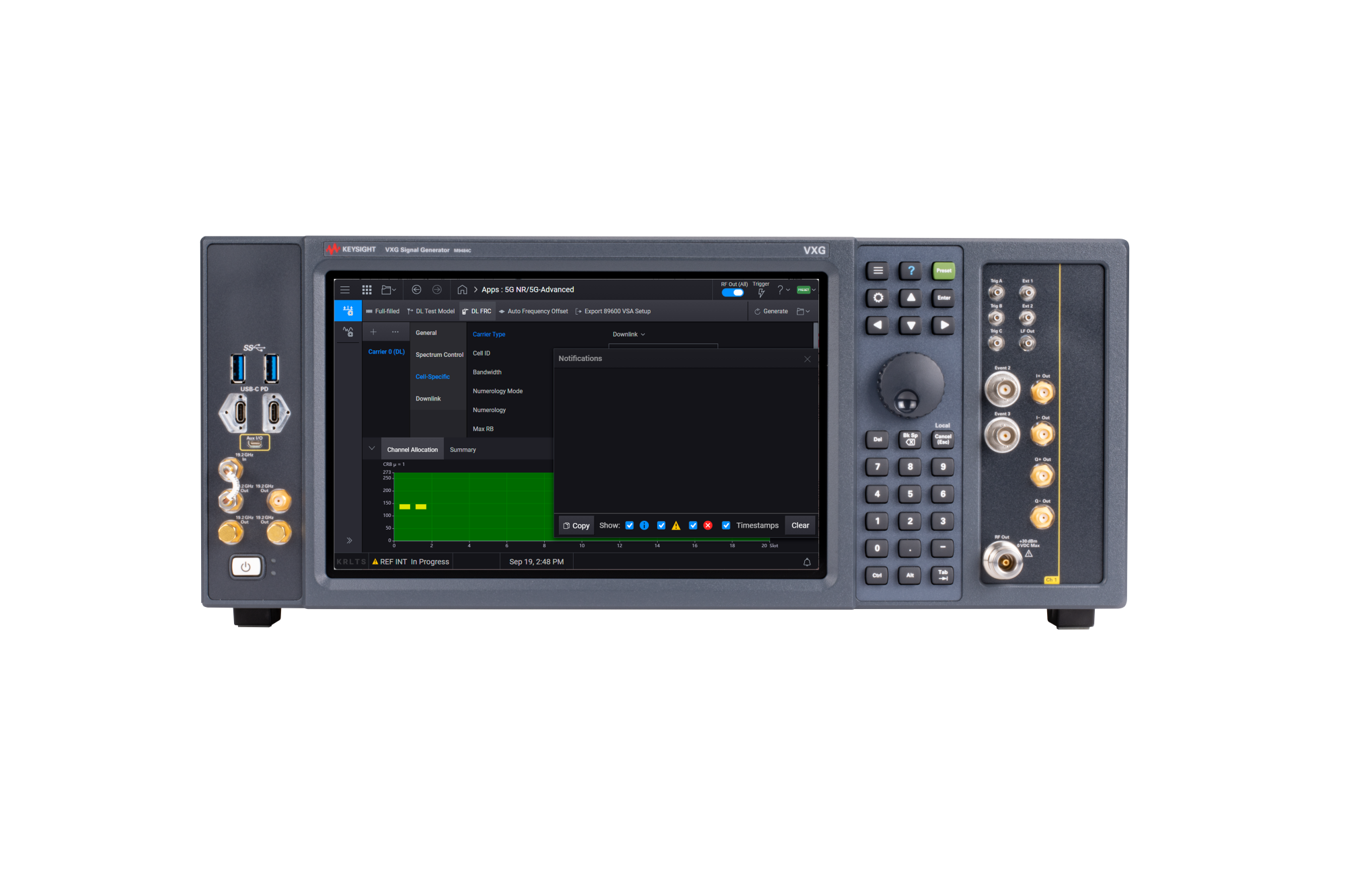

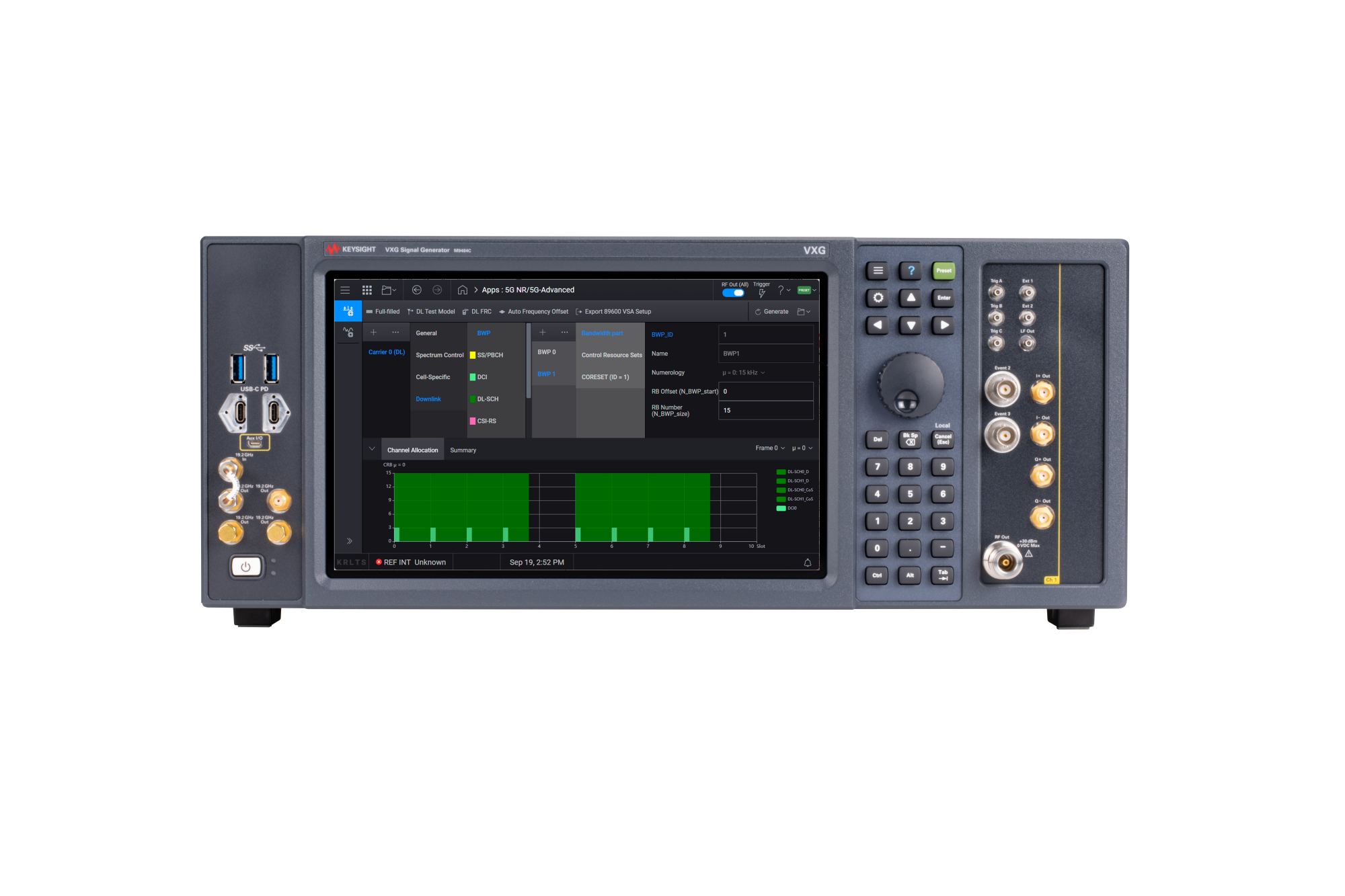

Keysight supports tiered PathWave signal generation models with N-model applications (N7631APPC with prefix "N") for high-performance HW platforms: M9484C VXG, M9384B VXG, and M9383B VXG-m, E-model applications (E7631APPC with prefix "E") for mid-range HW platform: N5186A MXG.

Higher-tiered models can run on lower tiered HW platforms, but not vice versa. For example, N7631APPC could run on MXG N5186A, but E7631APPC cannot run on M9484C VXG.
