• 3-slot mainframe with USB, LAN and GPIB interfaces
• 6 1/2-digit (22-bit) internal DMM, scanning up to 450 channels per second with new solid-state multiplexer module
• 10 switch and control plug-in modules to choose from
• 24-bit sampling rate of 800 kSa/s with a new DAQM909A 4 channel digitizer module
• Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
• 100k readings of non-volatile memory holds data when power is removed
• Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
• A BenchVue software license (BV0006B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences

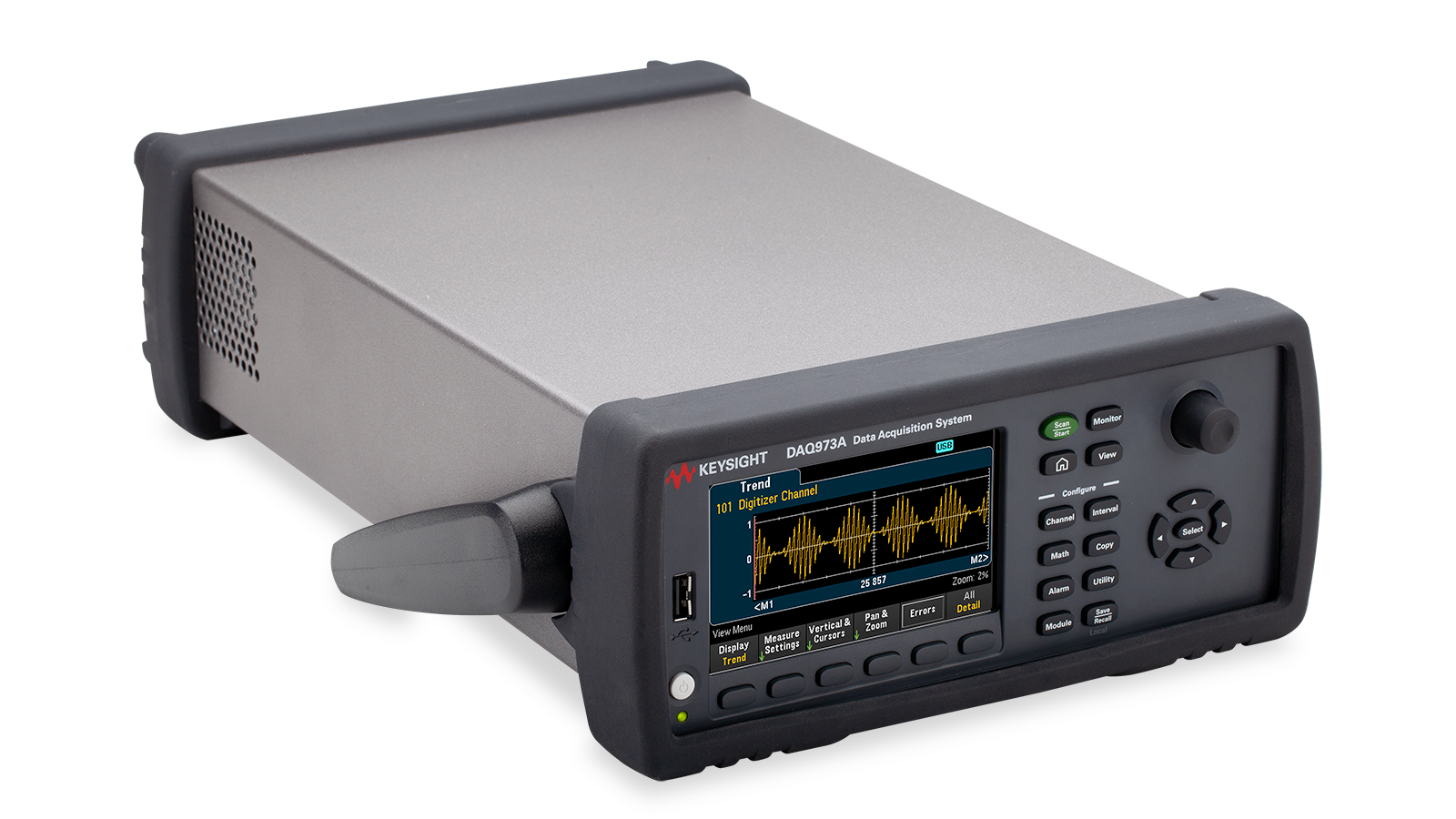

Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 9 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.

• Advanced 6½ digit internal DMM with improved accuracy and faster measurement speed
• Ability to measure very low current ranges (1 μA DC and 100 μA AC) and higher resistance range (1000 MΩ)
• New auto-calibration that compensates for internal drifts caused by time and temperature changes
• 3497XA compatible, program and configuration

PLUS

• All modules have been updated to have improved switching speeds and accuracies
• NEW DAQM900A solid state multiplexer with scan rate speed of up to 450 channels/sec
• NEW DAQM909A 24-bit digitizer module providing 4 channels, simultaneous sampling, differential inputs, and sample rates up to 800 kSa/s

Keysight’s BenchVue DAQ Control and Analysis app is available for use with the DAQ970A, DAQ973A, 34970A, 34972A and 34980A. BenchVue
