Output Rating: 80 W

• Output 1: 0 to 6 V, 0 to 5 A
• Output 2: 0 to +25 V, 0 to 1 A
• Output 3: 0 to -25 V, 0 to 1 A

Programming Accuracy ±(% of output + offset)

• Voltage: 0.1% + 5 mV, 0.05% + 20 mV, 0.05% + 20 mV
• Current: 0.1% + 10 mA, 0.1% + 4 mA, 0.1% + 4 mA

Ripple and Noise (20 Hz to 20 MHz)

• Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
• Normal-mode current: <2 mA rms, <500 µA rms, <500 µA rms

Readback Accuracy ±(% of output + offset)

• Voltage: 0.1% + 5 mV, 0.05% + 10 mV, 0.05% + 10 mV
• Current: 0.1% + 10 mA, 0.1% + 4 mA, 0.1% + 4 mA

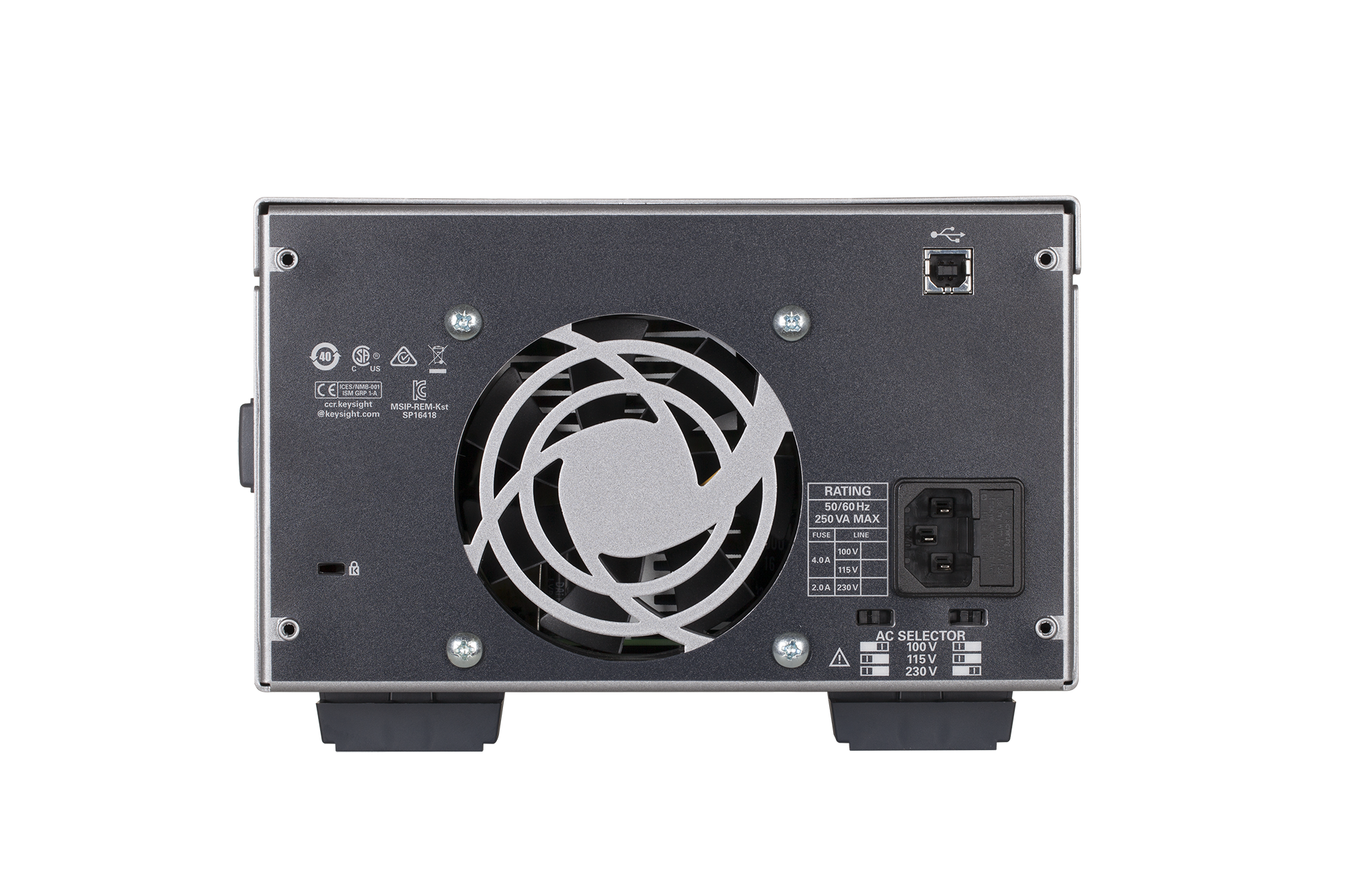

The 80-Watt E36311A is a clean, reliable bench power supply for general purpose applications. It provides three outputs in a compact, intuitive package. The E36311A is the most basic of the three models in this product family. More advanced capabilities such as data logging, output sequencing, list mode, and auto parallel/serial explore the E36312A (80 W) and the E36313A (160 W) models.

Download BenchVue Basic app for free to control your instruments.
