Output Rating- 200 W

• Output 1: 0 to 30 V, 0 to 20 A

Programming Accuracy ± (% of output + offset)

• Voltage: 0.03% + 4 mV
• Current: 0.1% + 6 mA

Ripple and Noise (20 Hz to 10 MHz)

• Normal Mode Voltage: <350 µVrms / 4.5 mV p-p
• Normal-mode current: <1 mA rms

Readback Accuracy ± (% of output + offset)

• Voltage: 0.03% + 4 mV
• Current: 0.1% + 6 mA
• Low Range Current, <100 mA: 0.25% + 160 uA

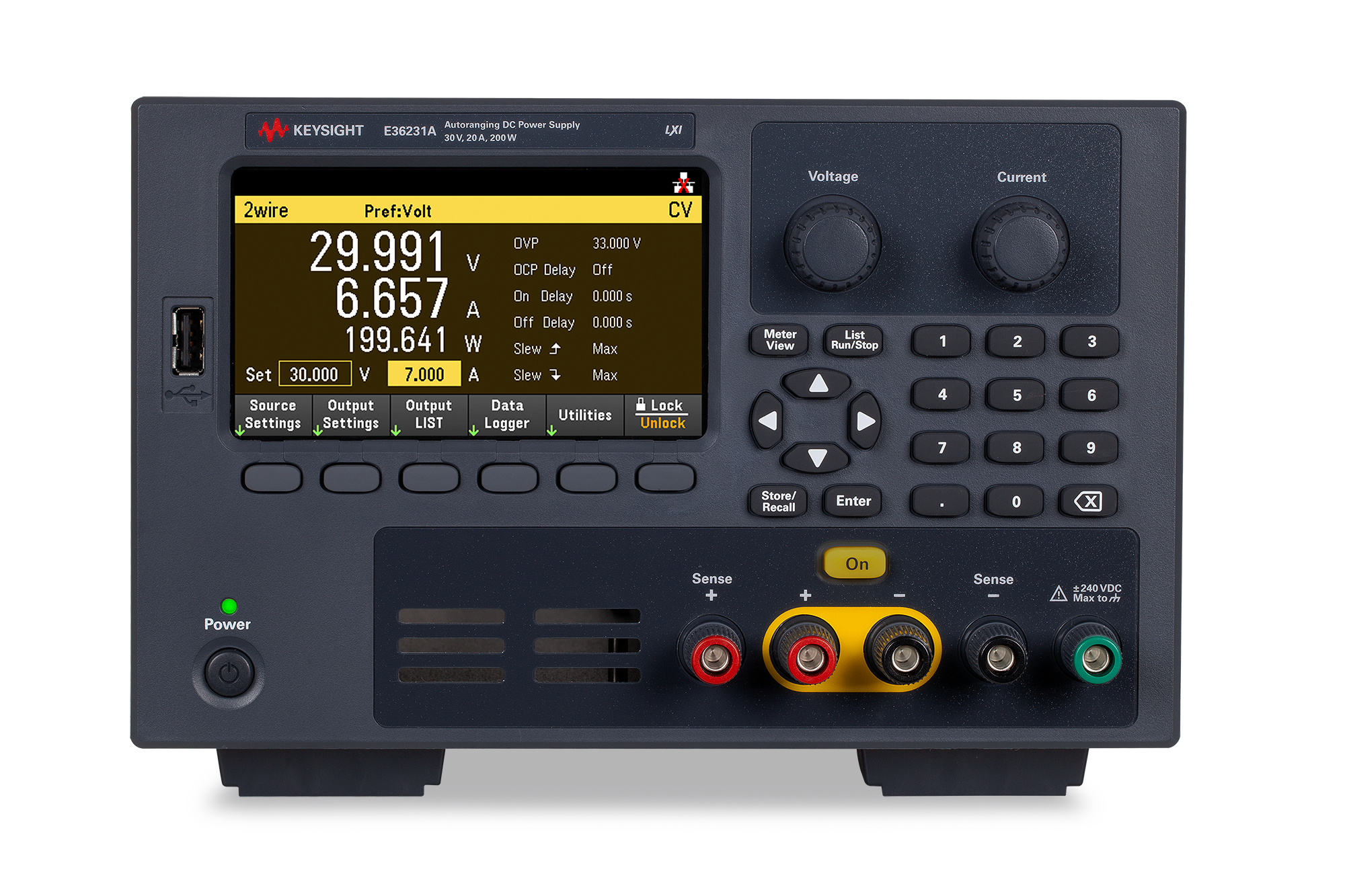

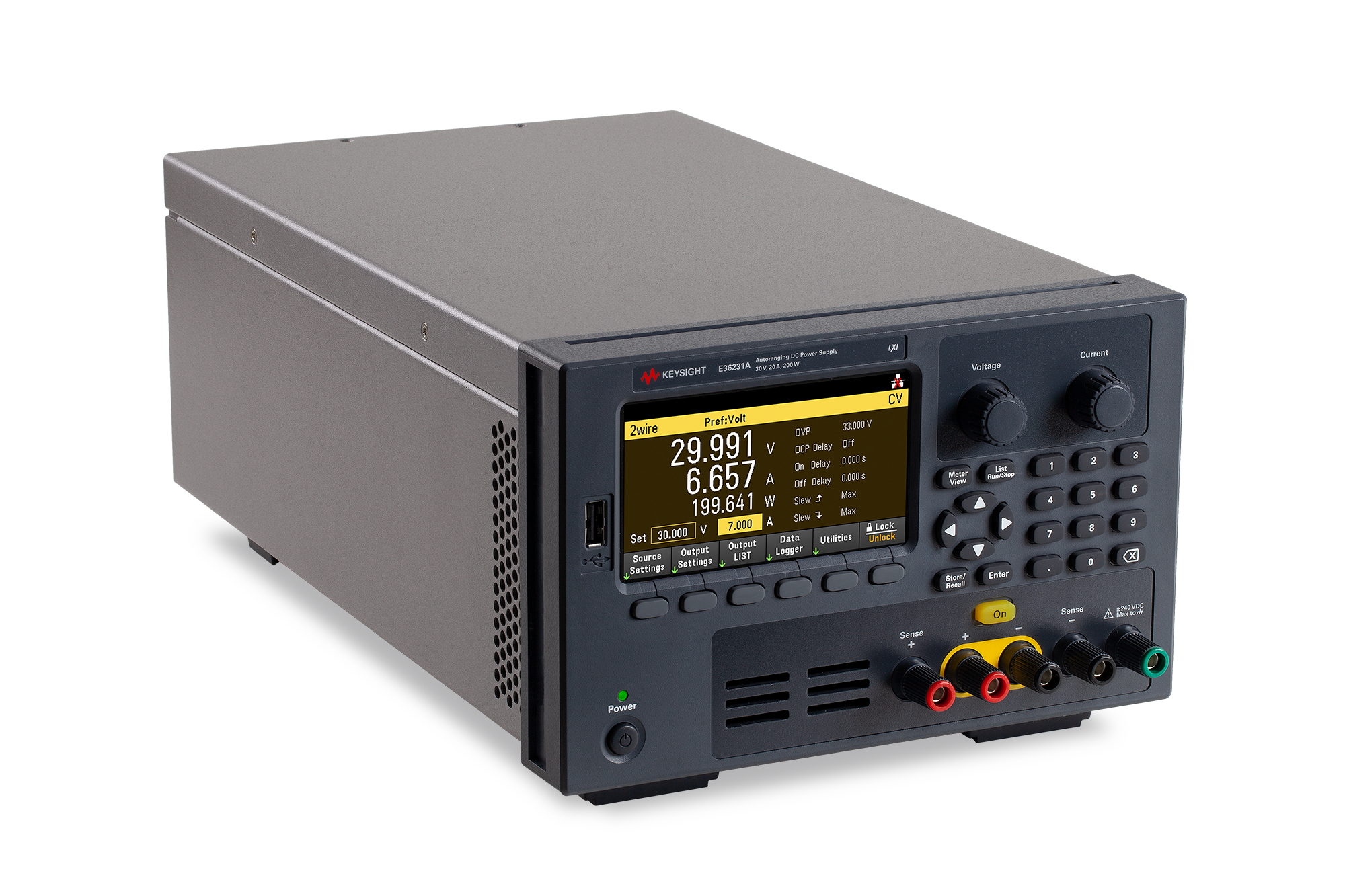

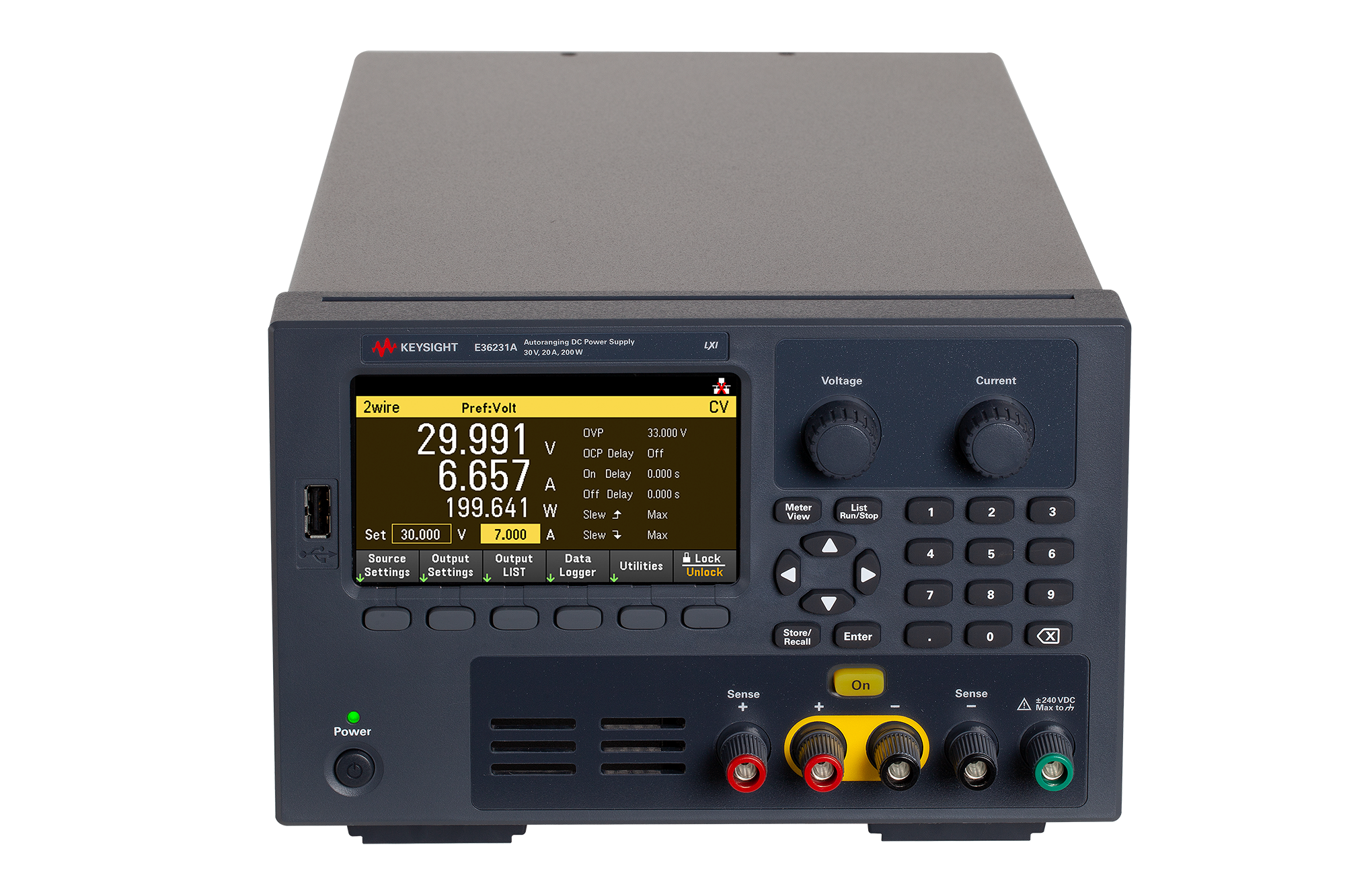

The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Autoranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.
