Input Rating

0-150 V, 0-60 A, 350W

Operating Modes

Constant Current, Constant Voltage, Constant Resistance, Constant Power

Constant Current Programming Accuracy ± (% of output + offset)

• Low, 0.6 A; 0.04% + 130 μA
• Medium, 6 A; 0.04% + 2 mA
• High, 60 A; 0.04% + 12 mA

Constant Current Readback Accuracy ± (% of output + offset)

• Low, 0.6 A; 0.04% + 120 μA
• Medium, 6 A; 0.04% + 1.8 mA
• High, 60 A; 0.04% + 9.6 mA

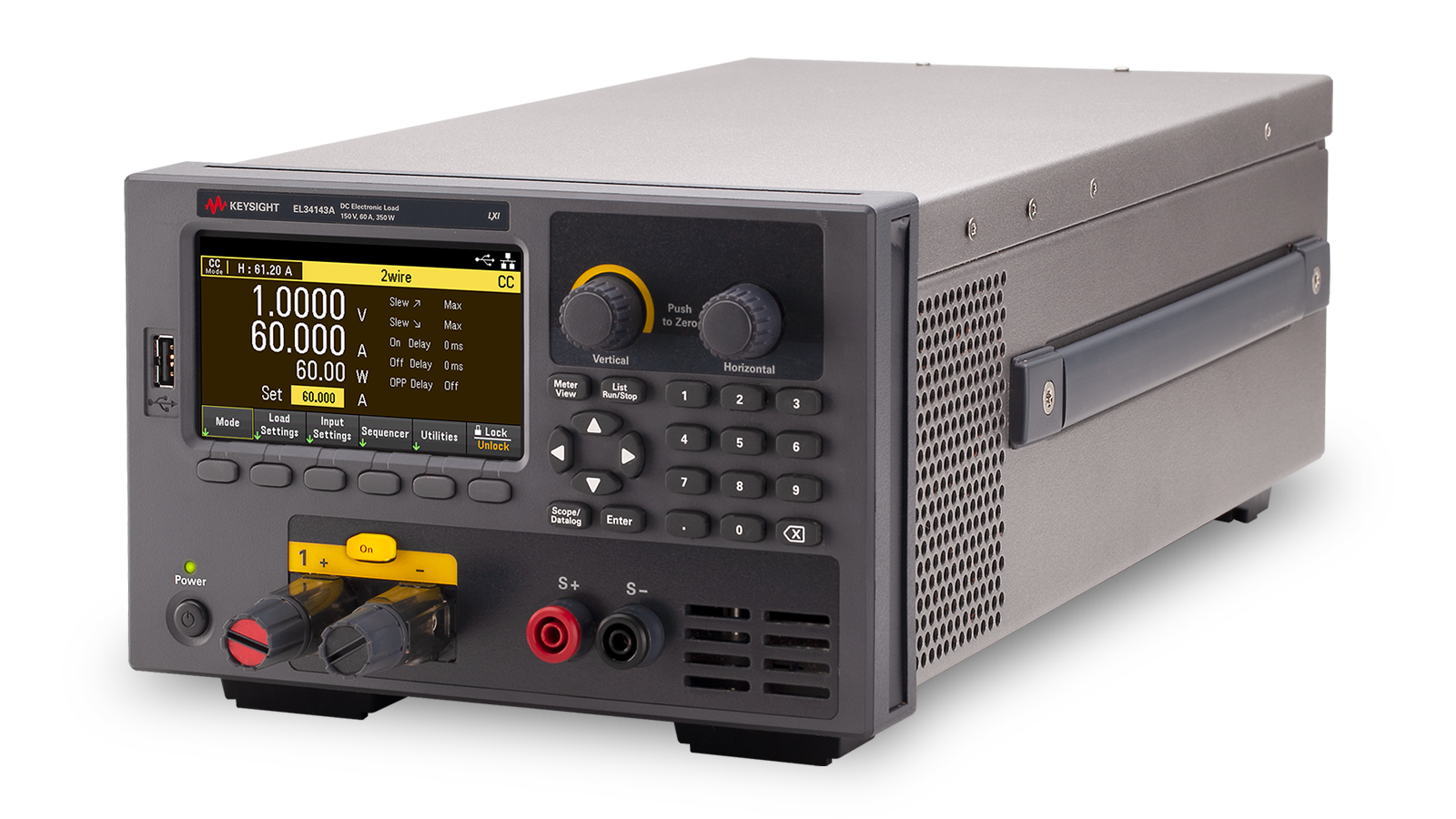

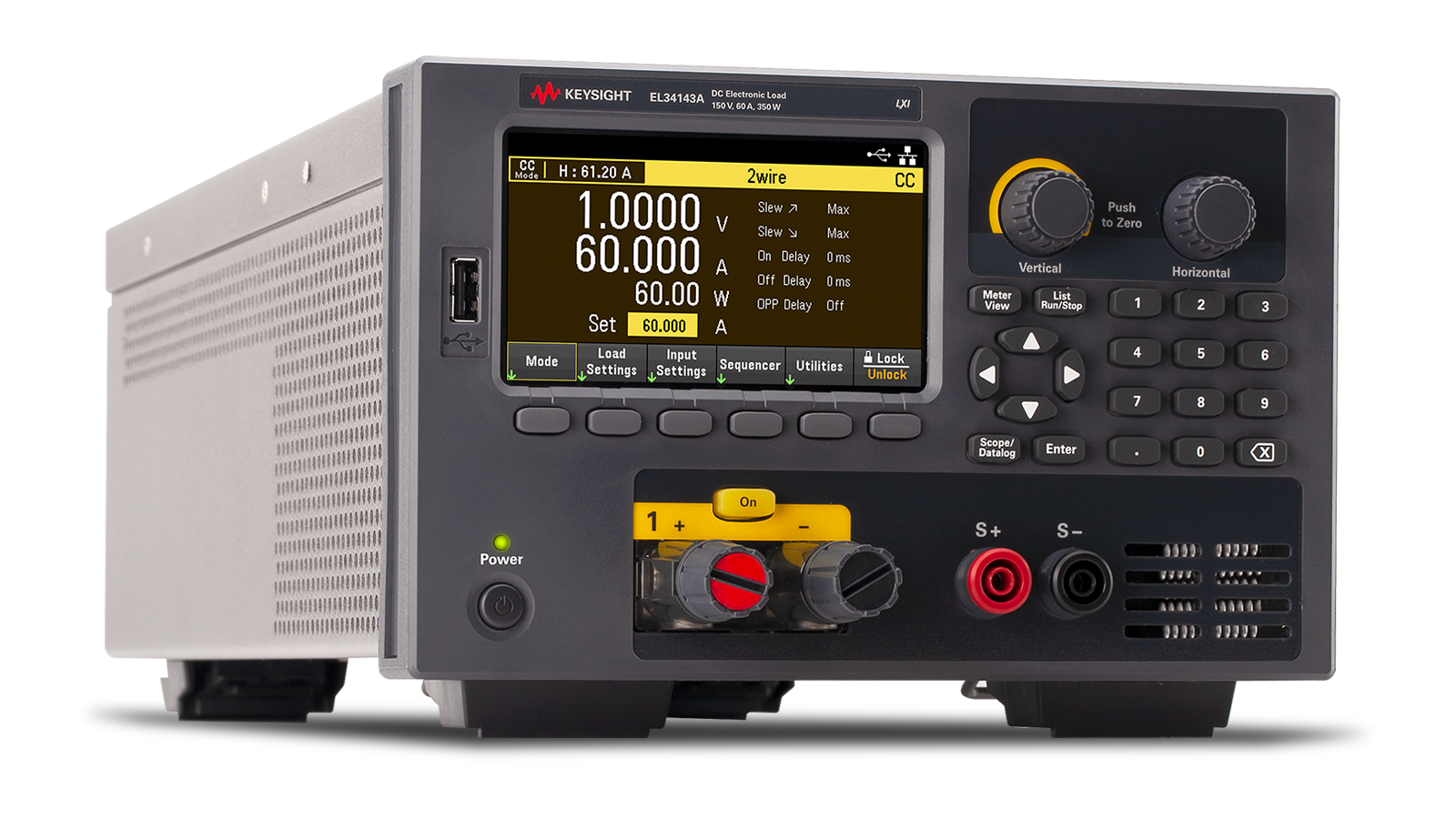

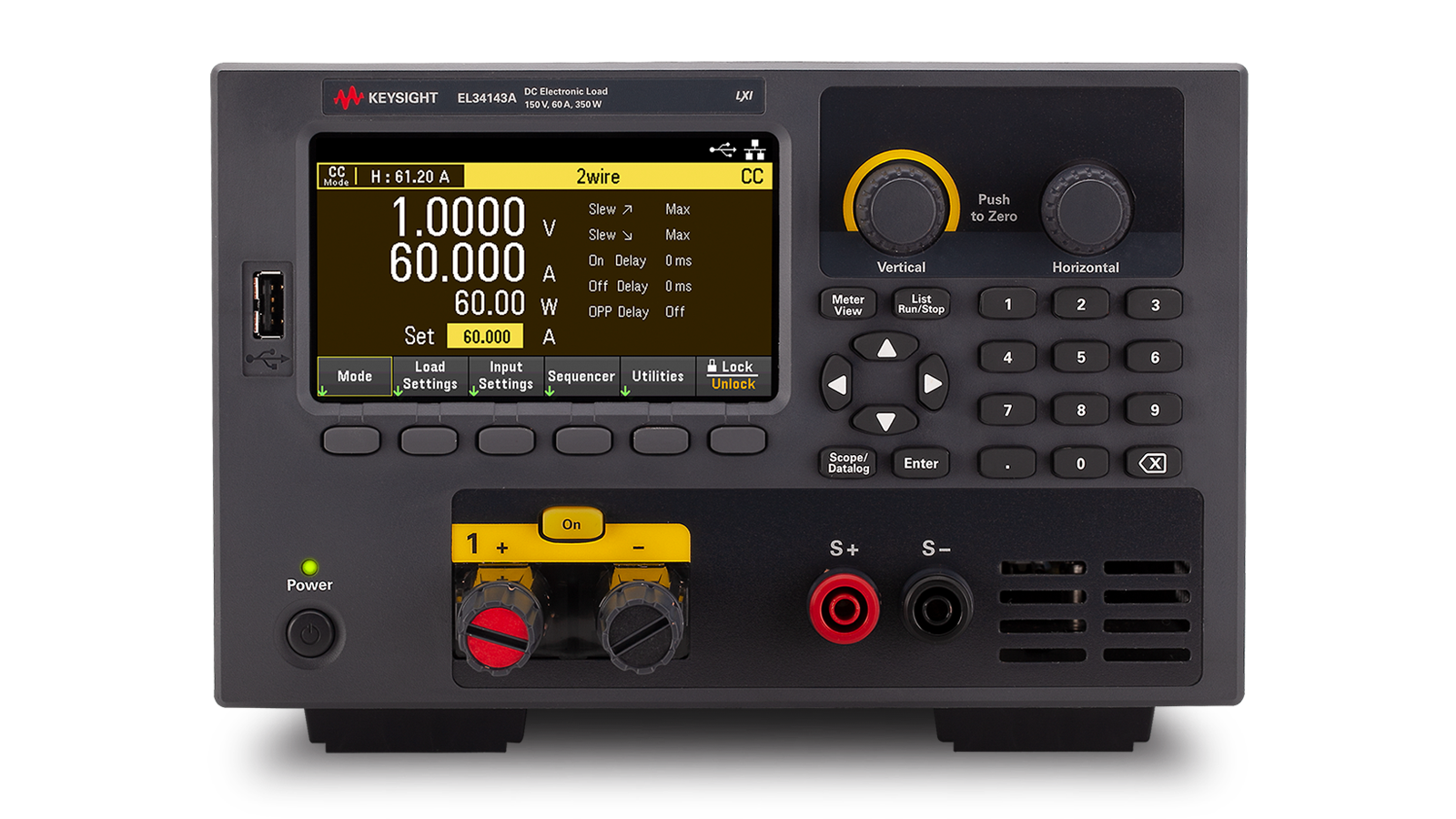

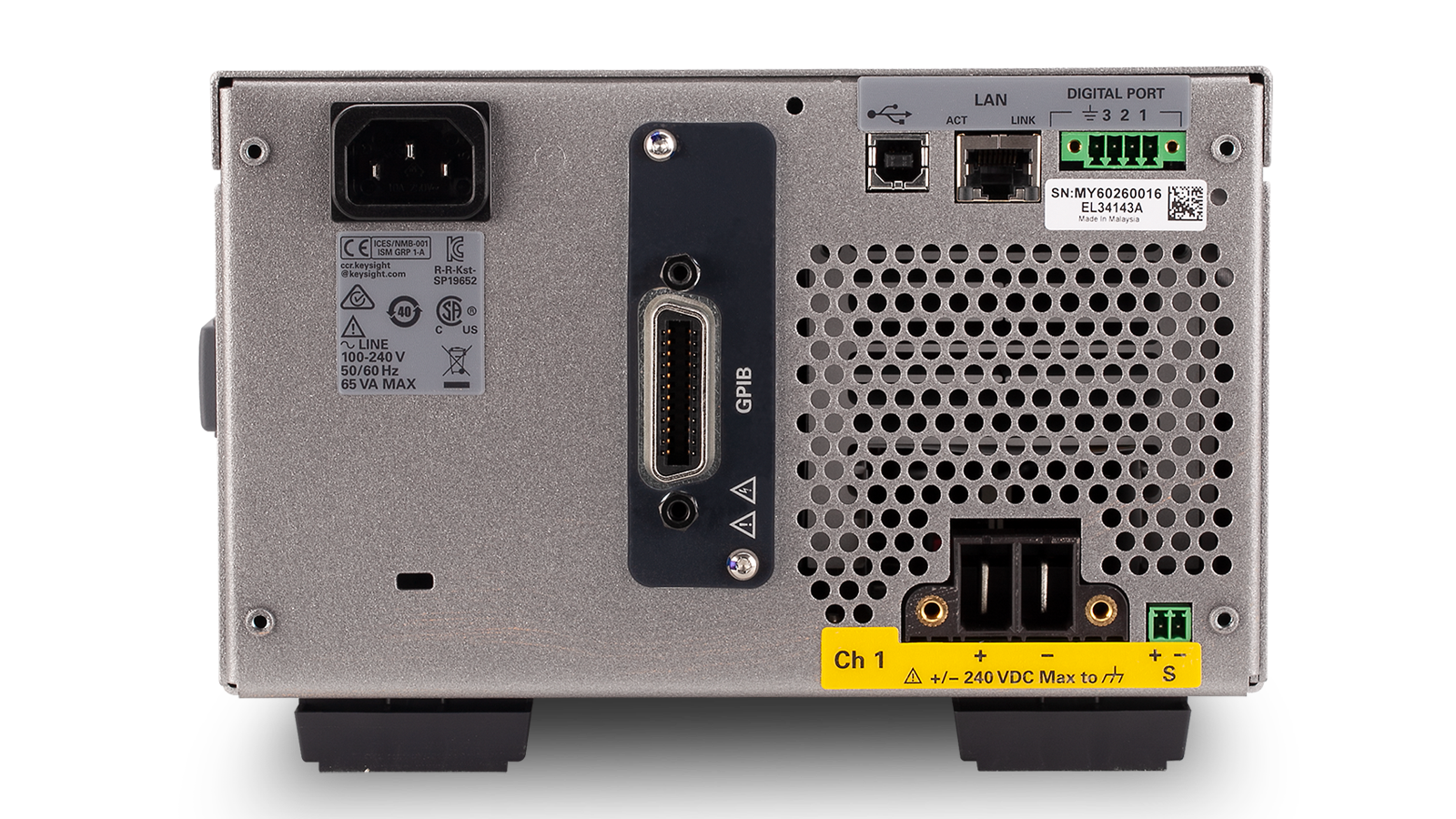

Keysight’s EL30000 Series bench electronic loads consist ofthree models, all with a built-in data logger. The EL33133A basic performanceelectronic load offers an economical price, a limited range, and a single 40 A,150 V, and 250 W input. Two performance models offer additional ranges, theEL34143A single input 60 A, 150 V, 350 W, and EL34243A dual input 60A, 150V,600 W.
